Choosing the Right PSU: Efficiency and Wattage Explained

What is the difference between 80+ gold, silver, bronze, platinum rated PSU?

The “80 Plus” certification is a standard used to rate the efficiency of Power Supply Units (PSUs) for computers. The different levels of certification (Bronze, Silver, Gold, Platinum, and Titanium) indicate the efficiency of the PSU at various load levels. Here’s a detailed explanation of each rating and what it means:

  1. 80 Plus Bronze:
    • Efficiency: At least 82% efficiency at 20% and 100% load, and 85% efficiency at 50% load.
    • This is the entry-level certification for 80 Plus. It ensures that the PSU is reasonably efficient and wastes less power as heat.
  2. 80 Plus Silver:
    • Efficiency: At least 85% efficiency at 20% load, 88% at 50% load, and 85% at 100% load.
    • This is a step up from Bronze, providing better efficiency and often a slightly better build quality.
  3. 80 Plus Gold:
    • Efficiency: At least 87% efficiency at 20% load, 90% at 50% load, and 87% at 100% load.
    • Gold-rated PSUs are quite efficient, reducing energy waste and heat generation compared to lower-rated units. They’re often chosen by enthusiasts and gamers who want a balance of efficiency and cost.
  4. 80 Plus Platinum:
    • Efficiency: At least 90% efficiency at 20% load, 92% at 50% load, and 89% at 100% load.
    • Platinum-rated PSUs offer high efficiency, which can lead to lower electricity bills and less heat generation. These are typically used in high-end systems where efficiency and reliability are key.
  5. 80 Plus Titanium:
    • Efficiency: At least 90% efficiency at 10% load, 94% at 20% load, 96% at 50% load, and 94% at 100% load.
    • Titanium is the highest level of efficiency. These PSUs are designed for extreme performance and energy efficiency, often used in enterprise environments or ultra-high-end gaming and workstation builds.

The key difference between these ratings is the efficiency of the PSU at various load levels. Higher efficiency ratings generally mean less energy waste, lower electricity costs, less heat generation, and potentially a longer lifespan for the PSU. However, higher-rated PSUs tend to be more expensive, so it’s important to choose a PSU that fits your budget and meets your efficiency needs.


Is a Bronze-rated PSU sufficient?

An 80+ Bronze Power Supply Unit (PSU) can be reliable, but it generally has a higher chance of failing compared to Gold or Platinum-rated units. If a Bronze PSU does fail, there’s a greater risk of power surges, which could damage your expensive components, leading to much higher replacement costs than the $25-$50 you’d save by opting for a lower-rated PSU.

Higher-rated PSUs, like Gold or Platinum, offer greater efficiency, which means reduced power usage. This increased efficiency can result in noticeable savings on your electricity bill over time.

Never skimp on fundamental components like the motherboard, PSU, cooling, or fans, as these are critical to the stability and longevity of your system. If you’re looking to cut costs in your build, consider more budget-friendly memory: higher memory speeds rarely translate into noticeable performance improvements, and the premium price is often due to cosmetic enhancements like decorative heat sinks. You could also opt for a lower-tier CPU: an entry-level Ryzen 5 or Core i5 with 4-6 threads can handle most tasks efficiently. Additionally, ensure your GPU matches your monitor’s capabilities—buying a high-end graphics card like an RTX 2080 when your monitor only supports 1080p at 60Hz is just wasting money.

What is a good very high-end PSU for overclocking?

A good PSU for overclocking needs to provide stable power with a bit of headroom for overclocked components. Here are some points to consider when choosing a high-end PSU for overclocking:

  1. Quality and Reliability:
    • Stick with reputable brands like Corsair, EVGA, Seasonic, Cooler Master, MSI, or Thermaltake. These brands are known for producing high-quality PSUs that are reliable and built to last.
  2. Wattage:
    • To determine the appropriate wattage, consider your overall system components (including any overclocked CPUs and GPUs). While the exact wattage needed varies, a 750W to 1000W PSU generally suffices for high-end overclocked systems. Use online PSU wattage calculators to get an estimate based on your specific components and overclocking plans.
  3. Efficiency Rating:
    • While not strictly necessary, an 80 Plus Gold or higher-rated PSU is advisable. It indicates a higher efficiency level, which can lead to less heat generation and potentially longer PSU lifespan.
  4. Build Quality and Safety Features:
    • Look for PSUs with high-quality internal components, strong capacitors, and comprehensive safety features (like over-voltage protection, under-voltage protection, and short-circuit protection). This ensures stability and reduces the risk of damaging other components during overclocking.
  5. Modular Design:
    • Modular or semi-modular PSUs allow for easier cable management, which can improve airflow and make maintenance easier. This is helpful for overclocking, as better airflow can contribute to system stability.

Considering the above, some recommended high-end PSUs for overclocking are:

  • Corsair HX Series: Known for their reliability and high build quality. The HX850 and HX1000 are popular choices.
  • EVGA SuperNOVA G6 Series: Offers 80 Plus Gold efficiency, modular design, and robust safety features.
  • Seasonic Focus Plus Platinum Series: Highly efficient with an 80 Plus Platinum rating and modular design.
  • Cooler Master V Gold Series: A strong contender with 80 Plus Gold efficiency, modularity, and a 10-year warranty.

Ultimately, the best PSU for overclocking depends on your system’s specific power requirements. Once you have an estimate of the wattage you’ll need, choose a PSU from a reputable brand that meets or exceeds that requirement, with a preference for those with higher efficiency ratings and robust safety features.

What is Power Supply Efficiency, and Why Is It Important?

Power supply efficiency is a measure of how much of the electrical power drawn by a Power Supply Unit (PSU) is successfully converted into usable power for your computer, with the remainder lost as heat. PSUs with higher efficiency ratings—Bronze, Silver, Gold, Platinum, and Titanium—have lower energy loss, generate less heat, and often have better build quality.

While almost all PSUs from reputable brands meet certain efficiency standards, opting for a higher-efficiency PSU can offer benefits such as reduced heat output, lower electricity bills, and longer component lifespan. However, for PCs with lower power requirements, like those with an Intel Core i5 and integrated graphics, choosing a Gold or Platinum PSU may not be cost-effective.

For high-performance PCs, particularly those with powerful components like an Nvidia RTX 3080 and Intel Core i9, a higher efficiency rating makes more sense. These systems draw more power and produce more heat, so a Gold or Platinum PSU can help maintain stability and keep operating costs down.

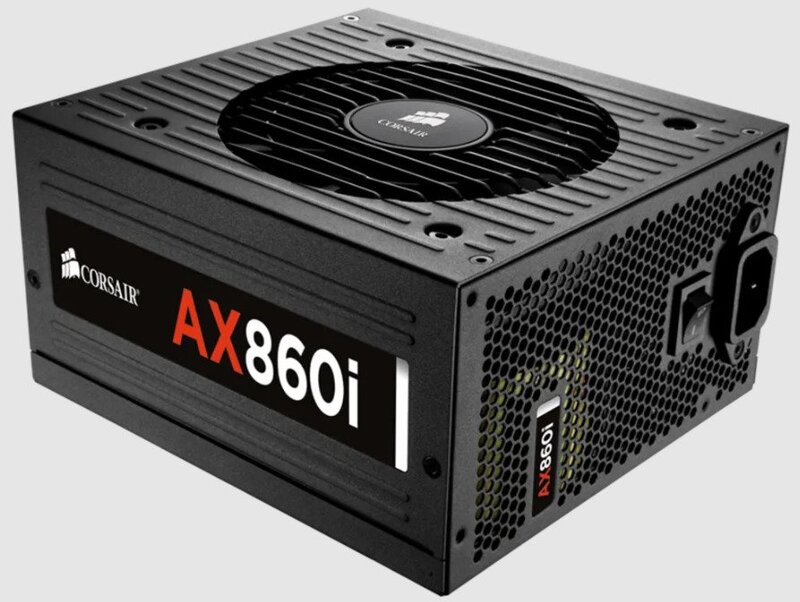

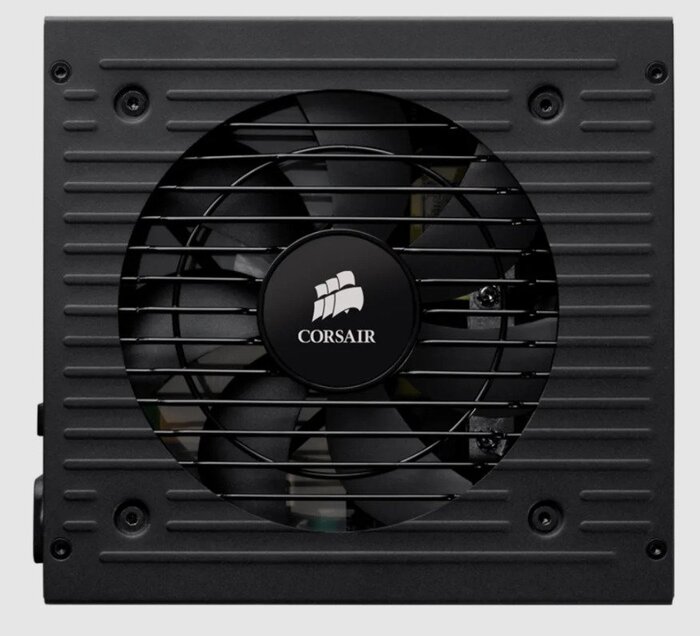

AX860i – images: Corsair

PSU: Efficiency Ratings

Efficiency Level kWh/year Cost per Year
PSU that meets minimum ATX efficiency requirements 1398.11kWh $164.98
Typical low cost PSU 1199.82kWh $141.58
80 PLUS Bronze PSU 988.09kWh $116.59
80 PLUS Silver PSU 954.48kWh $112.63
80 PLUS Gold PSU 934.31kWh $110.25
80 PLUS Platinum 914.15kWh $107.87

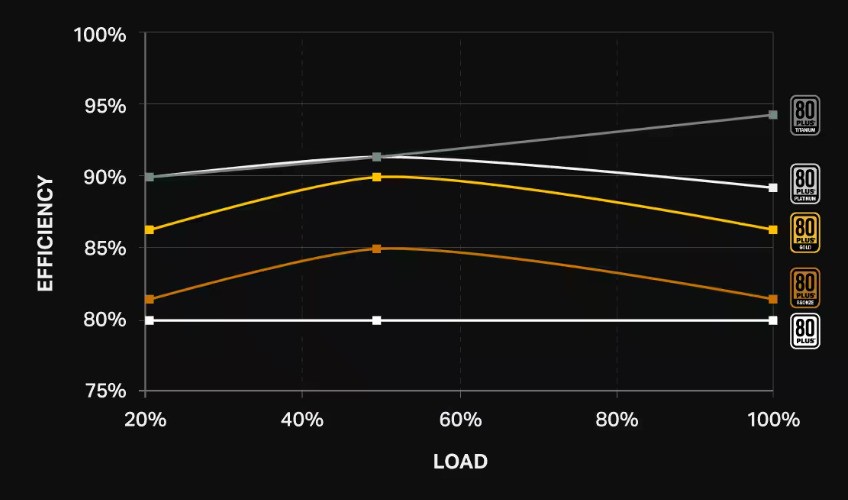

PSU Efficiency Ratings
PSU Efficiency Ratings

How Much Power Does Your PSU Need?

As a general rule, the wattage of your PSU should be approximately twice the total TDP (Thermal Design Power) of your CPU and GPU combined. This provides a safe margin for additional components and future upgrades. In many cases, a PSU between 600W and 700W is a good choice for standard setups. If you opt for a PSU with higher wattage, it may run cooler and quieter because the fan might not need to spin up at lower loads.

How Long Should You Use a PSU Before Replacing It?

PSUs are among the most durable computer components, with high-end units often carrying warranties of 10–12 years. Here are some factors to consider when deciding whether to replace your PSU:

  • Obsolescence: If new hardware requires different connectors or standards, it might be time to upgrade.
  • Warranty Expiry: Replacing a PSU once its warranty has expired can be a good precautionary measure.
  • Performance Issues: If you notice inconsistent power output, increased noise, or other performance drops, it could signal that your PSU is wearing out.
  • Power Requirements: If you upgrade your system with more power-hungry components, you may need a higher wattage PSU.

In my personal experience, I had a 750W Gold PSU in a secondary PC, running for about 8 hours a day for 10 years without any issues. The key is to choose a high-quality PSU from a reputable manufacturer (like Seasonic, EVGA, Corsair, or be quiet!), which can significantly impact its lifespan.
