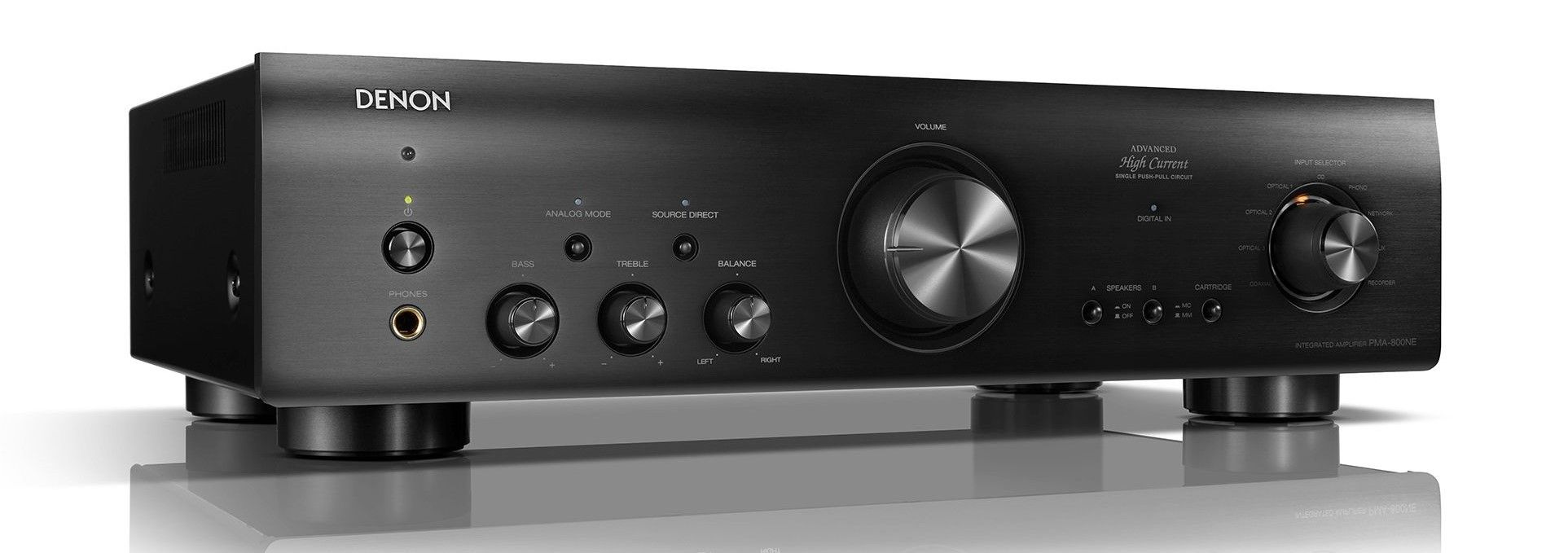

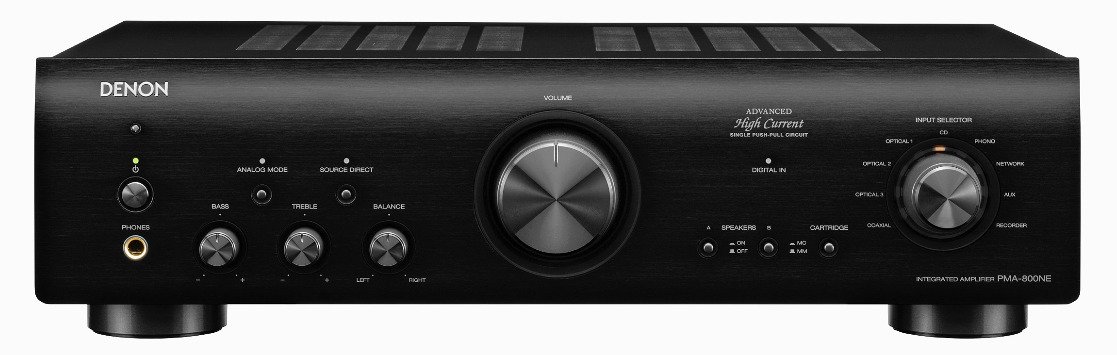

Designed to maximize the sound of everything from the TV to the turntable, the Denon PMA-800NE is a flexible premium audio device.
Built for sound
Using carefully chosen, premium electronics, the Denon PMA-800NE has the smooth, all-round sound you’d expect from this premium audio brand. For the lowest distortion, Denon uses an anti-vibration frame with a rigid steel plate that supports the power transformer. Reducing vibrations means that the subtle nuances in the music are clearer than ever.
Analog mode for purity
For even purer sound, you can turn off the digital circuitry. When using an analog source, such as the turntable, simply switch to analog mode and enjoy reduced distortion and the most realistic sound of your music.
Connect your turntable
You can connect a wide range of sources to this flexible Denon amplifier, not least the turntable. Compatible with moving magnet and moving coil cartridges, the PMA800NE works with all types of discs. Simple design with short signal paths reduces signal loss, maximizing information extracted from logs. Photo: Denon
Connect your digital sources
In addition to its turntable, the PMA – 800NE also fully includes its digital sources. With three optical inputs and one digital coaxial, you can connect your TV, Blu-ray player, game console and CD player. With superior Texas Instruments DAC (Digital to Analog Converter) quality, this Denon amplifier will enhance the sound of most of your digital sources.
Connect All!
Continuing its hosting capability, the PMA800NE also has inputs for four analog sources and an analog audio output for recording, too. Two sets of speaker outputs are ideal for running a second set of speakers in another room. If you prefer to listen in private, a headphone jack is also standard. Denon PMA-800NE price is $949.00
Listen to the whole system at its best, with the Denon PMA-800NE integrated amplifier.
Denon PMA-800NE specs:
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| Ground isolator for DAC Mode operation | No |
| Channels | 2 |
| Advanced HC-TR single push pull circuit | Yes |
| Wide range amplifier | Yes |
| High current dynamic power supply | Yes |
| Power amp discrete construction | Yes |
| Micro processor auto off | Yes |
| Solid Heat Sinks | Yes |
| Source Direct | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Bluetooth / aptX / NFC | No |
| Digital in: USB-B / optical / coaxial / USB-A | No |
| Sample Rate digital In | No |
| USB-B PCM sample rate | No |
Others
| Vertical Installation | No |
| Low Noise OELD display | No |
| Source Direct | Yes |
Inputs Outputs
| Speaker A / B | Yes |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | No |
| Gold plated Cinch | Yes |
| Remote Control Bus in / out | Yes |
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial | No / Yes / Yes |
| Phono Input: MM / MC | Yes / Yes |
| Audio Outputs | 1 |
| Pre-out / Main-in | No / No |
| Number of terminals | 4 |
Specifications
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz |
| Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%) | 50 W + 50 W |
| Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 85 W + 85 W |
| Input Sensitivity: MM | PHONO (MM): 2.5 mV / 47 kΩ/kohms PHONO (MC): 200 μV / 100 Ω/ohms |
| Signal to Noise Ratio: MM/MC | 86 dB / 71 dB |
| Input Sensitivity: High level | 105 mV / 40 kΩ/kohms (SOURCE DIRECT: Off) 105 mV / 17 kΩ/kohms (SOURCE DIRECT: On) |
| Signal to Noise Ratio: High level | 105 dB |
| Treble Control | 10 kHz ±8 dB |
| Bass Control | 100 Hz ±8 dB |
General
| Metal Front Panel | Yes |
| Power Consumption in W | 200 |
| Standby Consumption in W | 0.3 |
| Remote Control | RC-1173 |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Weight in kg | 7.5 |
| Available colors: Premium Silver / Black | No / Yes |
| System Remote Function | Yes |
