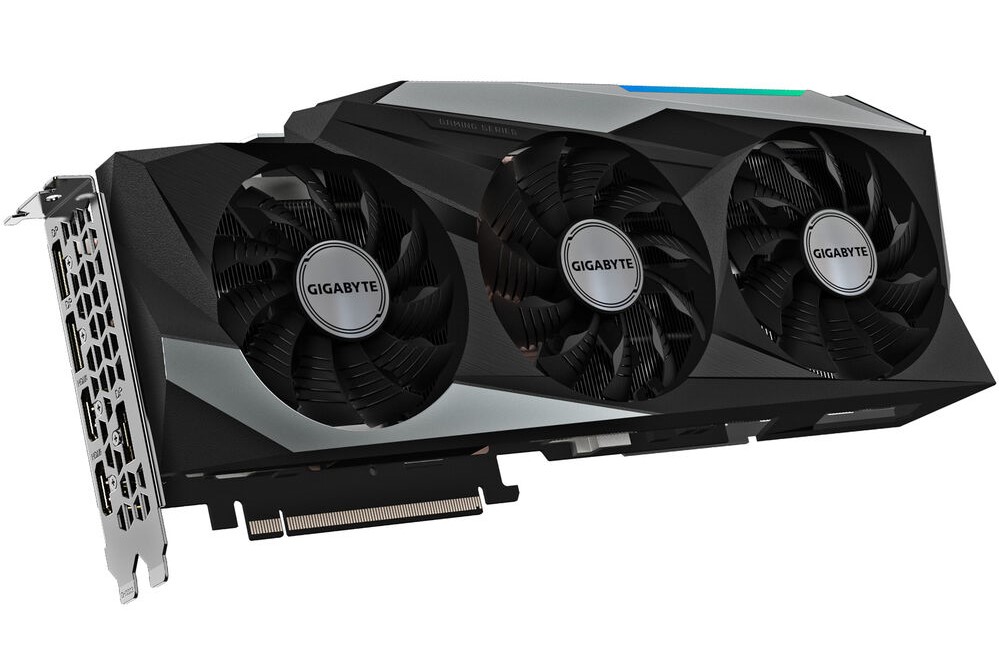

Gigabyte RTX 3090 GAMING OC: Durability, good cooling system & 8K gaming

Primarily based on the Ampere architecture and created to deal with the graphical requirements of 8K video gaming and high frame rates, the Gigabyte GeForce RTX 3090 GAMING OC 24G Graphics Card provides the strength of real-time ray tracing and AI to your PC game titles. The GPU capabilities 24GB of GDDR6X VRAM and a 384-bit memory user interface, supplying enhanced general performance and power effectiveness over the earlier Turing-based generation.
The front panel of the Gigabyte GeForce RTX 3090 GAMING OC 24G Graphics Card features a wide variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 works with up to 48 Gb/s bandwidth and a range of better resolutions and refresh rates, including 8K @ 60fps, 4K @ 120fps, and quite possibly up to 10K. The RTX 3090 is not simply about high-resolution gaming. Computationally extensive programs can utilize the GPU’s 10496 cores to speed up tasks using CUDA and some other APIs.Gigabyte GeForce RTX 3090 GAMINGFor cooling, Gigabyte GeForce RTX 3090 GAMING used the WINDFORCE 3X cooling method. It includes two 90mm fans and one 80mm fan. The fans feature special blades, where the airflow is split through the triangular fan edge, and guided smoothly via the 3D stripe curve on the fan surface area. With different spinning, the fans decrease turbulence and boost air pressure. The 3D Active Fan delivers semi-passive cooling down and the fans may turn off when the GPU is in a low load or lower power state. Generally there is also 7 composite copper heat pipes and a huge copper plate with direct contact to the GRAPHICS CARD and VRAM, which effectively transfer heat. The expanded heatsink style and design helps air flow to pass through, giving much better heat dissipation. It also has RGB Fusion 2.0, which has 16.7 million personalized color choices and a wide variety of lighting effects. You can also use it to sync with some other AORUS products.

Real-Time Ray Tracing
The NVIDIA GeForce RTX platform allows real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination.
DLSS
NVIDIA DLSS (Deep Learning Super Sampling) is AI rendering that increases frame rates while still providing ideal image quality using the dedicated AI processing Tensor Cores on the GeForce RTX platform. This provides you the overall performance you need to maximize ray tracing settings and resolutions for an impressive aesthetic experience. Photo: Gigabyte
HDMI 2.1
The HDMI 2.1 interface provides improved bandwidth, allowing a single cable to output to 8K HDR TVs for ultra-high-resolution game playing.Gigabyte GeForce RTX 3090 GAMINGNVIDIA Ampere Architecture
NVIDIA Ampere is the Second generation RTX architecture. It features up to twice the FP32 throughput, Second Gen RT Core throughput, and Third Gen Tensor Core throughput of the earlier generation. It furthermore features a Samsung 8N customized technique and utilizes GDDR6X VRAM.

Related Articles

Gigabyte GeForce RTX 3090 GAMING Specs:

  • Graphics Processing    GeForce RTX™ 3090
  • Core Clock   1755 MHz (Reference card is 1695 MHz)
  • CUDA® Cores   10496
  • Memory Clock   19500 MHz
  • Memory Size   24 GB
  • Memory Type   GDDR6X
  • Memory Bus   384 bit
  • Memory Bandwidth (GB/sec)   936 GB/s
  • Card Bus   PCI-E 4.0 x 16
  • Digital max resolution   7680×4320@60Hz
  • Multi-view    4
  • Card size   L=320 W=129 H=55 mm
  • PCB Form   ATX
  • DirectX   12 Ultimate
  • OpenGL   4.6
  • Recommended PSU    750W
  • Power Connectors 8 pin 2
  • Output   DisplayPort 1.4a   3    HDMI 2.1    2
  • SLI Support   2‎-way NVIDIA NVLINK™
  • Accessories  1. Quick guide   2. 4-year warranty registration
