Exploring the Extent: Long-Range Wireless Routers and Their Factors

Wireless routers, also known as wireless access points, play a crucial role in providing network access through radio waves, eliminating the need for physical cables. However, the range over which these devices can communicate with PCs is influenced by various factors.

The standards governing wireless communication, such as 802.11b, 802.11g, and 802.11n, impact the maximum range of wireless routers. Currently, routers operating on the 802.11n standard boast the longest range. Compared to the previous 802.11g standard, 802.11n nearly doubles the unhindered range, covering approximately 200 to 300 feet (61 – 91m). Yet, achieving optimal range involves addressing specific challenges that affect wireless routers.

Maximizing Unobstructed Range:

The unhindered range of wireless routers can be extended by addressing certain key considerations. Transmitting more power to the antenna enhances the signal’s ability to overcome obstacles. While some routers have limitations on transmission levels set by manufacturers, when possible, increasing transmission power proves beneficial. This adjustment allows signals to reach further and facilitates penetration through materials like brick or metal walls.

wireless router has the longest range

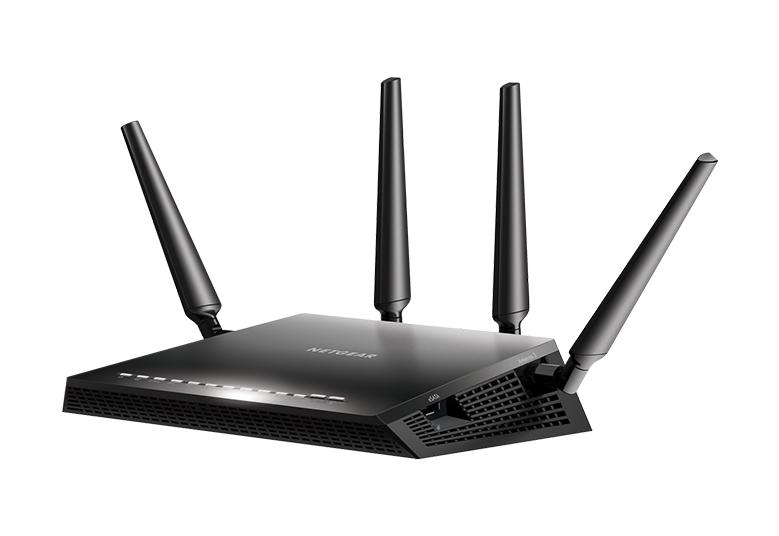

wireless router – Nighthawk X4S – photo: netgear

Antenna Types and Their Impact:

The majority of routers come equipped with omnidirectional antennas, broadcasting signals with equal strength in all directions. While this configuration is suitable for centrally located routers, it may result in signal issues in specific scenarios, such as when routers are placed on the far side of a building.

Different antenna types, such as Yagi and directional antennas, can focus energy into a single long-range beam, ideal for point-to-point wireless links. Others radiate energy like omnidirectional antennas but focus it in a specific direction for extended range, making them suitable for wall mounting.

Navigating Spectrum Challenges:

Wireless routers operate in unlicensed spectrum, where multiple users can transmit and receive on the same frequencies. Excessive transmissions on the same frequency can lead to signal confusion, reducing usable bandwidth and causing connection drops. Changing the wireless router frequency to a less crowded option, among the at least three non-overlapping frequencies provided by the 802.11 standards, can effectively increase both range and speed.

Choosing the Right Device:

The effectiveness of long-range wireless routers is not solely determined by power transmission but also by the efficiency of antennas. While directional antennas and high-gain antennas have their applications, they may not always be cost-effective. Some routers use innovative technologies like Beam Steering, modifying signal phases to enhance communication with devices in specific directions.

In the realm of range, the architecture of a space significantly influences wireless performance. Factors such as the number of walls, floors, and construction materials impact the signal’s ability to penetrate, especially in the 5GHz band. Defining a specific range for WiFi proves challenging unless the environment is an open field with an unobstructed path between the router and the device.

In conclusion, understanding the intricacies of wireless routers and their range involves considering standards, antenna types, spectrum challenges, and the specific requirements of the environment in which they operate. As technology evolves, optimizing these factors becomes crucial for achieving reliable and extended wireless connectivity.
