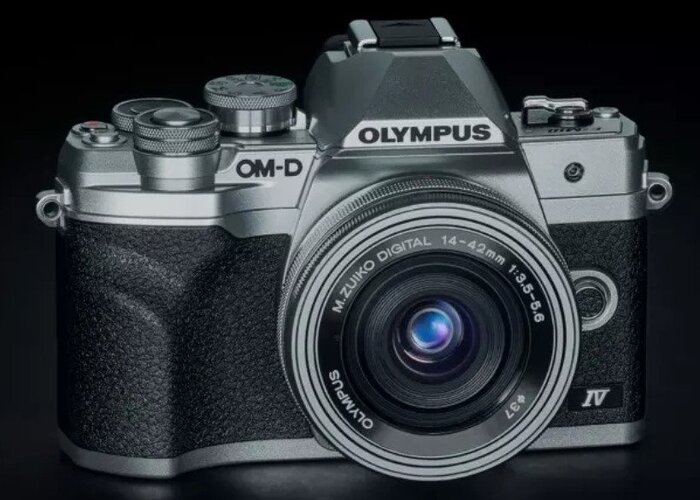

The Olympus E-M10 Mark IV is a digital camera that was released by Olympus Corporation in 2021. It is a mirrorless camera that is part of the Olympus OM-D series of cameras.
The E-M10 Mark IV is a compact camera that is designed for photographers who want a high-quality camera in a portable form factor. It has a 20.3-megapixel Live MOS sensor and is capable of capturing images at high resolution. The camera is also capable of capturing 4K video at up to 30 frames per second.
One of the standout features of the E-M10 Mark IV is its advanced autofocus system, which utilizes 121 phase-detection points and 121 contrast-detection points to provide fast and accurate focusing. The camera also has a 5-axis in-body image stabilization system, which helps to reduce camera shake and blur in images.
In terms of connectivity, the E-M10 Mark IV has built-in Wi-Fi and Bluetooth, allowing you to transfer images and videos wirelessly to your smartphone or tablet. The camera is also compatible with the Olympus Image Share app, which allows you to remotely control the camera and view images on your smartphone or tablet.
Overall, the Olympus E-M10 Mark IV is a high-quality, compact camera that is suitable for a wide range of photography applications, including portrait, landscape, and street photography.
The Olympus OM-D E-M10 IV is a compact and beautiful camera, just like its predecessors. Its SLR-style body and numerous dials may seem imposing to some beginners, but Olympus has striven to make it easy to use for those who want to avoid those controls.Changes to the front grip can be subtle, but it’s safer and keeps your hand positioned higher on the camera for added stability. The thumb grip is substantial and is positioned to avoid accidentally pressing the buttons.
While the back of the camera has a conventional control design, the top plate is loaded, perhaps over-loaded. It has two control dials (good news for fans), a dial in mode and three small buttons, two of which can be customized.
The Olympus OM-D E-M10 Mark IV is the entry-level model of the Micro Four Thirds line of DSLR-style cameras (PEN models, such as the E-PL10, are rangefinder style). It’s a step up from the beginner-focused E-PL series, which offers more controls, better build quality, and a wider feature set. It sports a 20MP four-thirds sensor, body image stabilization, foldable touchscreen with a simple interface, and 4K video capture.
A useful addition is USB charging, something that has been absent from low-end Olympus cameras for too long. It takes hours to fully charge the battery, but being able to recharge on the road is a must these days. We would like Olympus to still include an external charger, which is now a $60 option.The camera does not support the USB PD standard, so it cannot be charged with high-power chargers.
Under a plastic port at the bottom of the camera you will find the battery compartment and memory card of the E-M10 IV. The memory card slot is compatible with high-speed UHS-II cards, a pleasant surprise for a camera in this price range, and you can understand how quickly it clears its buffer.
The OM-D E-M10 IV uses the venerable BLS-50 lithium-ion battery. The CIPA estimate for battery life is 360 shots per charge using the LCD screen (numbers with the viewfinder are not published), which is above average. In most situations, you will be able to take more photos than advertised, although frequent use of Wi-Fi can cause the opposite.
With its body stabilizer, the Olympus OM-D E-M10 Mark IV is a solid choice for those looking for high-quality 4K video images and easy-to-capture capture. The feature set isn’t the most robust (nor would we expect it to be), but off-camera images that use the “Natural” profile are generally really nice. We’d love to see the microphone and headphone jacks because they’re sadly absent.
In terms of video image quality, the Olympus E-M10 Mark IV camera works quite decently in its 4K mode of 30 frames per second. There are a lot of fine details recorded, the color is good, and both the sliding shutter and the fake color artifacts, although present, are quite minimal.
One of the main changes that Olympus highlighted in its announcement of the E-M10 IV was its improvements in autofocus, and especially in continuous AF monitoring. The company has also improved its face and eye detection algorithms, particularly when faces are detected from extreme angles.
The good news is that when this happened, releasing and then pressing the shutter button again would normally cause the focus to reopen fairly quickly and the tracking could continue once again, with maybe only a couple of frames lost. But there is no doubt that the continuous AF monitoring of the Olympus OM-D E-M10 Mark IV is still not up to par with the hybrid phase detection systems used by the competition.
The Olympus E-M10 Mark IV is a mirrorless camera that is compatible with lenses from the Olympus M.Zuiko Digital lens line. These lenses are designed specifically for use with Olympus mirrorless cameras and are available in a wide range of focal lengths and apertures to suit a variety of photography applications.
Some popular lenses for the E-M10 Mark IV include:
- M.Zuiko Digital ED 14-42mm F3.5-5.6 EZ: This is a standard zoom lens that is suitable for a wide range of photography applications. It has a relatively fast aperture and is capable of capturing sharp images.
- M.Zuiko Digital ED 40-150mm F4.0-5.6 R: This is a telephoto zoom lens that is ideal for capturing distant subjects. It has a relatively compact size and is lightweight, making it a good choice for travel photography.
- M.Zuiko Digital ED 17mm F1.8: This is a prime lens with a wide-angle focal length. It is suitable for capturing wide landscapes and architecture.
- M.Zuiko Digital ED 25mm F1.8: This is another prime lens, this time with a standard focal length. It is suitable for a wide range of photography applications, including portrait and street photography.
There are many other lenses available for the Olympus E-M10 Mark IV, including macro lenses, fisheye lenses, and teleconverters. It’s worth considering the type of photography you’ll be doing and selecting a lens that is suitable for your needs.
The Olympus E-M10 IV has a lot: it is affordable, very compact and lightweight and combines very well with its equally compact and lightweight 14-42mm kit lens. And it offers quite good image quality overall, as well as taking a significant step forward from its predecessor in terms of detail collection capabilities and high ISO noise levels.
Some more experienced photographers, however, will find it a bit limiting both because of its lack of customization, and because of the way some features like exposure bracketing are hijacked in SEMI-GUIDED AP (Advanced Photo) mode, where they can’t be combined with features in non-AP mode like exposure in priority mode. But for your target customer, it offers a good breadth of functionality and plenty of room to grow, while offering enough hand-in-hand support to make even relatively complex features accessible. Video: Olympus/YouTube
Frequent sports shooters will probably want to look for the Olympus line or a rival brand, as we find that the autofocus tracking of the E-M10 IV remains something of a weak point. That said, its autofocus is likely to be up to the task of filming school sports and family activities, subjects that are probably more typical of Olympus’ lens family documentary filmmakers.
The Olympus E-M10 Mark IV is a beautiful entry-level camera with some useful aids for new users, but with enough controls to provide room to grow. While its autofocus and burst speeds are right around the competition, its distinctive feature is an effective stabilizer on the body, especially useful for low-light still images and portable video shooting. Overall, the E-M10 IV is a good photo companion for a variety of users. Photo: Olympus
|Product Type||Micro Four Thirds interchangeable lens system camera|
|Memory||SD, SDHC (UHS-I / II), SDXC (UHS-I / II)|
|Sensor Size||17.4 mm x 13.0 mm|
|Lens Mount||Micro Four Thirds Mount|
|Image Sensor Type||4/3 Live MOS Sensor|
|Number of Pixels||Number of effective pixels: Approx. 20.3 million pixels|
Total number of pixels: Approx. 21.8 million pixels
|Dust Reduction||Supersonic Wave Filter (image sensor dust reduction system)|
Still Photo Recording
|Recording Format||DCF2.0, Exif2.31|
|File Format||JPEG, RAW (12-bit lossless compression), JPEG+RAW|
|Recording Image Size||RAW: 5184 x 3888 / JPEG: 5184 x 3888 ~ 1280 x 960|
Image Stabilisation System
|Image Stabilisation Type||Built-in 5-axis sensor-shift image stabilisation|
|Image Stabilisation Mode||S-IS ON, OFF|
|Stabilisation Performance||Compensation steps (In-body IS): 4.5|
|Focal Length Setting||1 setting|
|Finder Type||Eye-level OLED electronic viewfinder, approx. 2.36M dots|
|Field of View / Viewfinder Magnification||Approx. 100% / Approx. 1.23x (-1m-1, 50mm lens, Infinity)|
|Eye Point / Diopter Adjustment Range||Approx. 19.2mm (-1m-1, Distance from rear lens surface) / -4 ~ +2m-1|
|Display Grid||Off / normal grid / trichotomy / golden grid / scale / diagonal / movie grid|
|Finder Style||1 style|
|Brightness and Colour Temperature Control||Adaptive brightness technology (EVF Auto Luminance) / ±2 level manual brightness control / ±3 level manual colour temperature control|
|Optional Eyecup||Large Eyecup EP-16|
|Monitor Type||3.0-inch tilting monitor (electrostatic capacitance touch panel), Approx. 1037k dots (3:2)|

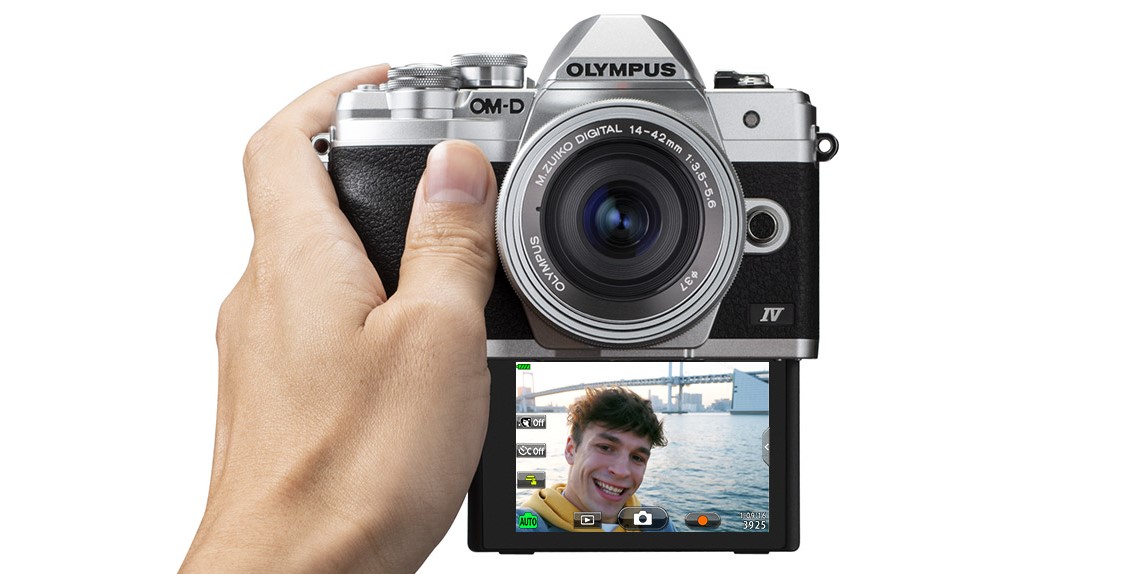

|Tilting Capability||Tilt type: Upward tilting: Up to approx. 80 degrees|
Downward tilting: Up to approx. 180 degrees (Selfie compatible)
|Touch Control||Shutter release, Touch AF (AF area selection, AF area size adjustment), AF targeting pad, Frame forward / backward, Magnified playback, Live Guide, ART / SCN / AP / Movie mode selection, Selfie Mode, Super Control Panel, Wi-Fi connection, Movie controls|
|Brightness / Color Temperature Control||±7 levels / ±7 levels|
|Colour Tone Select||Vivid, Natural|
|AF System||High-speed imager AF|
|Focusing Point||Contrast AF: 121 points|
|Focusing Point Selection Mode||All target, Single target (Normal), Group target (9-area)|
|Focus Mode||Single AF (S-AF), Continuous AF (C-AF), Manual Focus (MF), Single AF (S-AF+MF), AF tracking (C-AF+TR)|
|AF Targeting Pad||Available|
|Magnified Frame AF||3x, 5x, 7x, 10x, 14x|
|Super Spot AF||Available|
|Face Detection AF||Available|
|Eye Detection AF||Available|
|Manual Focus Assist||Available|
|Peaking Function||Colour: White, Black, Red or Yellow|
Exposure Control (Still)
(TTL Image Sensor Metering)
|Digital ESP metering (324-area multi pattern metering), Center-weighted average metering, Spot metering, Spot metering with highlight / shadow control|
|Metering Range||Lowest luminance (EV): -2|
Highest luminance (EV): 20
|ISO Sensitivity (AUTO)||LOW (approx.100) ‐ 6400|
|ISO Sensitivity (MANUAL)||LOW (approx.100), 200 – 25600|
|Exposure Compensation||±5 EV (1/3 EV steps)|
|AE Lock||Locks with a half-press of the shutter button (can be set to AEL/AFL button as well)|
|Focal-Plane Shutter (Mechanical Shutter)||1/4000 – 60 sec., Live Bulb, Live Time, Live Composite|
|Electronic First Curtain Shutter||1/320 – 60 sec.|
|Electronic Shutter (Silent Mode)||1/16000 – 60 sec.|
|Sequential Shooting Maximum Speed||[Sequential shooting H] approx. 8.7 fps|
[Sequential shooting L] approx. 5 fps
[Anti-shock sequential shooting L] approx. 4.8 fps
[Silent sequential shooting H] approx. 15 fps
[Silent sequential shooting L] approx. 6.3 fps
|Sequential Shooting Maximum Recordable Frames||Sequential shooting H at max. fps [RAW]: until card is full|
Sequential shooting H at max. fps [JPEG default]: until card is full
Sequential shooting L at max. fps [RAW]: until card is full
Sequential shooting L at max. fps [JPEG default]: until card is full
Silent sequential shooting H at max. fps [JPEG LF]: approx. 49
Silent sequential shooting H at max. fps [RAW]: approx. 42
Silent sequential shooting L at max. fps [RAW]: approx. 945
Silent sequential shooting L at max. fps [JPEG LF]: until card is full
|Flash Intensity Control Method||TTL Auto, Manual, Auto, Super FP (FP-TTL AUTO, FP-MANUAL)|
|Built-in Flash||TTL Flash, GN = 5.1 (ISO 100･m) / GN = 7.2 (ISO 200･m)|
|RC Commander Function||Available|
|Flash Mode||Redeye, Fill-in, Flash Off, Red-eye Slow sync. (1st curtain), Slow sync. (1st curtain), Slow sync. (2nd curtain), Manual (1/1 (FULL) – 1/64)|
|Synchronisation Speed||1/250 sec.[*] or slower|
|Flash Intensity||±3 EV (1/3 EV steps)|
|Compatible External Flash||FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R, FL-900R, STF-8, FL-700WR|
Wireless Flash Control
|Olympus Wireless RC Flash System|
(Triggered and Controlled by Flash)
Compatible External Flash
|FL-50R, FL-36R, FL-300R, FL-600R, FL-900R, FL-700WR|
|Commander Flashes||FL-600R, FL-900R, STF-8, FL-700WR|
|Group No.||4 groups (External flash 3 groups + commander flash)|
|Radio Wireless Control||Available|
|External Flash Intensity Type||TTL Auto, Manual, Auto, FP-TTL AUTO, FP-MANUAL|
|White Balance Mode||Auto WB, Presets WB (6 types), Capture WB (number of saved capture WB: 4), Custom WB (Kelvin setting)|
|White Balance Compensation||±7 steps along A-B / G-M axis|
|Colour Matrix||sRGB, Adobe RGB|
|Picture Mode||i-Finish, Vivid, Natural, Flat, Portrait, Monotone, Custom, e-Portrait, Color Creator, Art Filters|
|Gradation||4 types (Auto, Normal, High Key, Low Key)|
|Highlight and Shadow Control||Adjustable at ±7 steps each for highlight, shadow, and midtone|
|Art Filter||Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film, Pin Hole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line, Watercolor, Vintage, Partial Color (18 colours), Bleach Bypass, Instant Film|
|Art Filter Fine Tune||Pop Art(Pop Art I only), Soft Focus|
|Exposure Bracketing||3 frames (1.0 EV steps), 5 frames (0.7 EV steps)|
|Focus Bracketing||8 frames (Available in Advanced Photo mode, focus step is selectable from 5 or 10)|
|HDR (Auto composite)||HDR1, HDR2 (painting-like)|
|Keystone Compensation||Available as Keystone Compensation in Advanced Photo mode.|
Live Bulb / Live Time
|Live Bulb / Live Time||Update interval time 0.5 sec. – 60 sec.|
|Live Composite||Update interval time 0.5 sec. – 60 sec.|
|Interval Mode||Creating Time-lapse movie is possible|
|Number of Frames||2 frames|
|Multi Aspect||4:3 (Default), 3:2, 16:9, 1:1, 3:4|
One Push Tele-Converter
|Detection||2-axis (horizontal / vertical)|
|Video Recording Format||MOV (MPEG-4AVC / H.264)|
|3840 x 2160 (4K)||30p, 25p, 24p / IPB (approx. 102Mbps)|
|1920 x 1080 (FHD)||30p, 25p, 24p / IPB (approx. 52Mbps, approx. 30MBps, approx. 18Mbps)|
60p, 50p / IPB (approx. 52Mbps, approx. 30MBps, approx. 18Mbps)
|1280 x 720 (HD)||60p, 50p, 30p, 25p, 24p / IPB (approx. 26Mbps, approx. 14MBps, approx. 10Mbps)|
|Maximum Recording Time||Approx. 29 min.|
|Art Filter Movie||Available|
|One-push Movie Digital Converter||Not available|
|Time Lapse Movie||3840 x 2160 (4K) / 5 fps|
1920 x 1080 (FHD) / 5 fps, 10 fps, 15 fps
1280 x 720 (HD) / 5 fps, 10 fps, 15 fps, 30 fps
|High Speed Movie||120 fps (1280 x 720 / MOV)|
|Image Stabilisation for Video Recording||M-IS1 (multi motion IS by Image sensor shift and electronic image stabiliser), M-IS2 (Multi motion IS by Image sensor shift), OFF|
|Focus Peaking||4 colours|
|Live View Output via HDMI||Monitor mode|
|Sound Recording Format||Wave Format (Stereo linear PCM / 16-bit, Sampling frequency 48 kHz)|
|Microphone / Speaker||Built-in stereo microphone / built-in mono speaker|
|Microphone Function||Wind noise reduction, recording volume|
|GPS info. Function||Via GPS smartphone|
(Liveview Remote controle)
|Live View, Rec View, Wireless Touch AF shutter, Self Timer (w / Countdown guidance, Sequential shooting, movie recording capability), Wireless Release, Movie Recording, Power Off|
(Wireless release Remote controle)
|Image Share||Marking function for image share.|
|Easy Connection||Connect using a QR code|
|Easy Connection||Connect using Bluetooth|
|Simple Image Transfer|
|With the power turned off, automatically imported using the marking function for image share / remotely viewed. (Activated via Bluetooth and imported via Wi-Fi)|
(Wireless Release Remote Control)
|Wireless release (pressing the shutter button halfway / fully), Movie start / stop|
|Playback Mode||Single-frame, information display, index display (4 / 9 / 25 / 100 frames), calendar, enlargement (2x – 14x), movie (with sound, FF / REW / Pause), Slideshow (with sound and music), picture rotation (auto), Dubbed audio playback|
|Information Display||Histogram (independent luminance / RGB available), Highlight / Shadow point warning, AF frame, Photographic information, OFF|
|Movie Editing Function||Trimming (beginning / end) / in-movie image extraction (4K only)|
|Editing Function||RAW data edit, Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280 x 960, 640 x 480, 320 x 240), Trimming, Aspect, e-Portrait, Image Overlay, Post recording|
|RAW Data Edit||RAW data edit based on settings of the camera (including e-Portrait, Color Creator, Art Filter, ART-BKT)|
|Print Function||Print reservation (DPOF)|
|Languages||34 languages selectable :|
English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai
Input / Output
|USB / Remote Controller Connector||USB Micro-B / None|
|HDMI Connector||Micro HDMI (type D)|
|Flash Attachment||Hot shoe|
|Wireless LAN||Built-in (IEEE 802.11b/g/n)|
|Bluetooth||Built-in (Bluetooth Ver.4.2 Bluetooth Low Energy)|
|PC Interface||USB2.0 (Hi-Speed)|
|Battery||BLS-50 Li-ion battery|
|Battery Status Display||Remaining power (4 steps)|
|AC Adapter||F-5AC USB-AC adapter (bundled)|
|USB Charging||Built-in battery can be charged with USB|
|Sleep Mode||1 / 3 / 5 min., Off|
|Number of Recordable Images||Approx. 360 shots|
|Battery Life for Movie Recording||Under standard JEITA testing: 80 min.|
When zoom and other operational functions are not used: 140 min.
Dimensions / Weight
|Dimensions||121.7ｍｍ(W) x 84.6ｍｍ(Ｈ) ｘ 49ｍｍ(D)|
|Weight||Based on CIPA standards, with a bundled battery and 1 memory card, without eyecup): 383 g|
Body only: 335 g
