The AI Era Motherboard, GIGABYTE TRX50 AERO D!

GIGABYTE TECHNOLOGY Co. Ltd, a leading manufacturer of motherboards, graphics cards, and hardware solutions, introduced its latest High-End Desktop (HEDT) marvel, the TRX50 AERO D motherboard. With perfect support for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series processors, the TRX50 AERO D is designed to elevate content creation and AI operation experiences to new heights. Prosumers can now enjoy workstation-level performance at home.

⁠The TRX50 AERO D features versatile expansion options to support multiple GPUs and PCIe devices, enabling efficient handling of demanding workloads, such as the NVIDIA RTX™ Ada Generation professional graphics card and the AORUS Gen5 AIC Adaptor. Three PCIe x16 slots design provides superior performance for AI training, content creation, design rendering, scientific computing, and large-scale data analysis. Meanwhile, the triple-slot width design ensures enough space to accommodate large high-end graphics cards, offering better GPU compatibility and more effective cooling. Furthermore, the innovative PCIe UD Slot X can achieve a remarkable load-bearing capacity of up to 58KG due to its one-piece design, securely fastened to the dedicated backplate.

⁠Powered by an all-digital 28-phase design, the GIGABYTE TRX50 AERO D can unleash exceptional performance with the latest AMD Ryzen™ Threadripper™ processors, making it the most powerful HEDT platform for builders. The advanced thermal design includes an enlarged heatsink with a heat pipe in the VRM area and an M.2 thermal guard, providing high-efficiency heat dissipation to ensure the system stays cool while running multitasking or resource-hungry applications.


⁠TRX50 AERO D support quad channel DDR5 RDIMM with a maximum capacity up to 1TB for premium memory performance. In addition, the TRX50 AERO D offers cutting-edge connectivity, including lightning-fast data transfer with dual USB4® Type-C ports, each providing speeds of up to 40Gb/s, Wi-Fi 7 with GIGABYTE’s Ultra-high Gain antenna, and 10GbE/2.5GbE dual LAN connectivity. With four onboard PCIe 5.0/4.0 M.2 slots, the TRX50 AERO D is perfect for content creators, enthusiasts, and AI operations, allowing for RAID configurations of multiple NVMe devices to handle demanding workloads.

⁠Moreover, GIGABYTE’s exclusive DIY-friendly innovations in both hardware and firmware make it a breeze to set up your build. The newly designed M.2 EZ-Latch Click enables screwless installation of M.2 heatsinks when combined with the M.2 EZ-Latch Plus, allowing for tool-free installation of M.2 SSDs. The upgraded user-centric UC BIOS offers a redesigned UI and UX, featuring a Quick Access panel with customizable option slots.GIGABYTE TRX50 AERO D

The HEDT motherboard TRX50 AERO D boasts cutting-edge technology and user-friendly features, delivering exceptional performance and versatility, making it an excellent choice for content creators, enthusiasts, scientific computing, and AI operations. The TRX50 AERO D will be available on November 21st.

GIGABYTE TRX50 AERO D Specifications:

  • CPU
    AMD Socket sTR5, support for:
    AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
  • Chipset
    AMD TRX50
  • Memory
    Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
    4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
    Quad channel memory architecture
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
  • Audio
    Realtek® ALC4080 CODEC (rear panel audio)
    – Support for DTS:X® Ultra
    – High Definition Audio
    – 2-channel
    Realtek® ALC897 CODEC (front panel audio)
  • LAN
    Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
  • Wireless Communication module
    Qualcomm® Wi-Fi 7 QCNCM865
    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)GIGABYTE TRX50 AERO DNote:
    Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
    Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
  • Expansion Slots
    – 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

    – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

  • Storage Interface
    – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
    – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
    – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)

    – 8 x SATA 6Gb/s connectors

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
    – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    Chipset+Intel® JHL8540 USB4® controller:
    – 2 x USB4® USB Type-C® ports on the back panel

    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    – 2 x USB 3.2 Gen 1 ports available through the internal USB header

    CPU+USB 3.2 Gen 1 Hub:
    – 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    8 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x Clear CMOS button
    1 x reset button
    1 x reset jumper
    2 x temperature sensor headers
    1 x Clear CMOS jumper

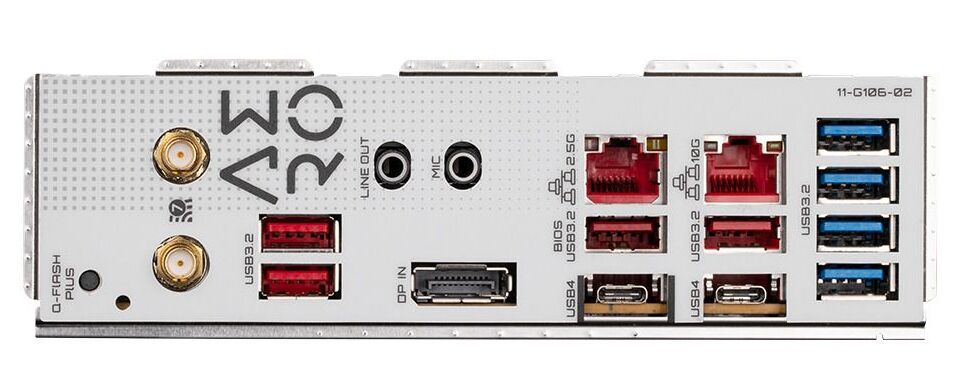

  • Back Panel Connectors
    1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort In port
    1 x USB4® USB Type-C® port (DisplayPort)
    1 x USB4® USB Type-C® port
    4 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    2 x RJ-45 ports
    2 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    Noise detection

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus

  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
          Form Factor
          E-ATX Form Factor; 30.5cm x 26.4cm
