USB 3.1, USB 3.0, USB Type C, USB 2.0 – Differences & compatibility
USB 3.1, USB 3.0, USB Type C, and USB 2.0 are different versions and types of USB (Universal Serial Bus) specifications. Each version offers different capabilities and features. Here’s a breakdown of their differences and compatibility:
- USB 2.0: USB 2.0, introduced in April 2000, is an older version of USB and is the most widely adopted standard. It supports data transfer rates of up to 480 Mbps (megabits per second). USB 2.0 ports are typically rectangular in shape and have a USB Type-A connector.
- USB 3.0/3.1 Gen 1: USB 3.0, also known as USB 3.1 Gen 1, was introduced in November 2008. It offers significant improvements over USB 2.0, with data transfer rates of up to 5 Gbps (gigabits per second), which is ten times faster than USB 2.0. USB 3.0/3.1 Gen 1 ports are backward compatible with USB 2.0 devices, meaning you can connect USB 2.0 devices to USB 3.0/3.1 Gen 1 ports.
USB 3.0 Type-A connectors have a similar design to the A-Type connectors used in USB 2.0 and USB 1.1 applications. They also provide a “downstream” connection intended for use on host controllers and hubs.

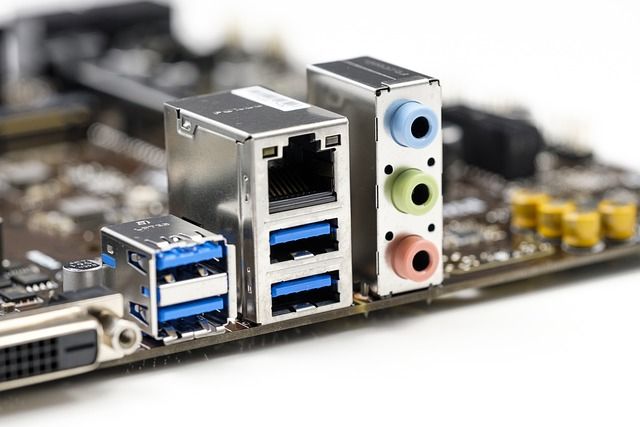

However, USB 3.0 Type-A connectors have additional pins that are not present in USB 2.0 Type-A connectors. The USB 3.0 connector is designed to support “SuperSpeed” data transfer with a bandwidth of 5 Gbps. It is also backward compatible, allowing for lower data rates when connected to USB 2.0 ports. USB 3.0 connectors are often distinguished by their blue color or the presence of the “SS” logo, helping to differentiate them from previous generations.
- USB 3.1 Gen 2: USB 3.1 Gen 2, introduced in July 2013, further improved data transfer speeds over USB 3.0/3.1 Gen 1. It supports data transfer rates of up to 10 Gbps, which is twice as fast as USB 3.0/3.1 Gen 1. USB 3.1 Gen 2 ports and cables are typically identified with a SuperSpeed+ logo.
The USB 3.1 internal connector cables, developed by Intel, are specifically designed for connecting the motherboard to the front panel USB ports of a computer case.
Like the previous USB 3.0 internal connector, the new generation internal connector also includes a 20-pin header version that supports either a single Type-C port or dual Type-A connections. However, the new connector features a smaller form factor and a more robust mechanical latch design. Additionally, a 40-pin header version of the internal connector was introduced to accommodate two full-featured Type-C ports.
- USB Type-C: USB Type-C is a connector and cable standard that was introduced in August 2014. It is a small, reversible connector that can be plugged in either way, eliminating the frustration of inserting the connector in a specific orientation. USB Type-C supports various protocols, including USB 3.1 Gen 1, USB 3.1 Gen 2, and Thunderbolt 3 (which offers even higher data transfer speeds). USB Type-C ports are increasingly becoming more common on devices such as laptops, smartphones, and tablets.
The USB Type-C connector, also known as USB-C, is the latest USB interface introduced alongside the USB 3.1 standard. Unlike the previously mentioned USB Type-A and Type-B connectors, the USB-C Type connector can be used on both host controller ports and devices with upstream sockets. Over the past few years, an increasing number of laptops and cellphones have been released with USB-C connectors.
The USB Type-C connector is compatible with USB 2.0, 3.0, 3.1 Gen 1, and Gen 2 signals. A fully featured USB 3.1 Gen 2 USB-C to USB-C cable can achieve a maximum data transfer rate of 10 Gbps. It also supports enhanced power delivery, allowing for up to 20V and 5A (100W) of power transmission. Additionally, USB-C supports DisplayPort and HDMI alternate modes, enabling the transfer of video and audio signals.
USB devices and Compatibility:
- USB 2.0 devices can be connected to USB 3.0/3.1 Gen 1 ports without any issues. However, the data transfer speed will be limited to the maximum speed supported by USB 2.0 (480 Mbps).
- USB 3.0/3.1 Gen 1 devices are backward compatible with USB 2.0 ports. They will work with USB 2.0 ports, but at USB 2.0 speeds.
- USB 3.1 Gen 2 devices can be connected to USB 3.1 Gen 1 ports, but the data transfer speed will be limited to the maximum speed supported by USB 3.1 Gen 1 (5 Gbps).
- USB Type-C ports can support multiple protocols, including USB 2.0, USB 3.0/3.1 Gen 1, and USB 3.1 Gen 2. However, the data transfer speed will be limited by the protocol supported by the device and the cable being used.
It’s important to note that while USB Type-C is a connector standard, it doesn’t determine the version or speed of the USB protocol being used. The version and speed are determined by the capabilities of the device, port, and cable being used.
Understanding USB standards and their specifications can be challenging, especially with the numerous updates they have undergone. In this discussion, we will explore the difference between USB 3.1 Gen 1 and Gen 2 and highlight why Gen 2 is an improvement over Gen 1. We will also provide additional information to help you grasp the key aspects of USB standards.
USB 3.0, introduced in 2008, marked a significant advancement from its predecessor, USB 2.0, which debuted in 2000 with a transfer speed of 480 Mbit/s. Over time, USB 3.0 became known as USB 3.1 Gen 1. In essence, USB 3.0 and USB 3.1 Gen 1 refer to the same standard.
The USB Implementers Forum (USB-IF), the organization responsible for maintaining USB specifications and ensuring compliance, implemented this naming convention to provide developers and manufacturers with consistent information and facilitate backward compatibility. USB-IF also plays a role in establishing the naming conventions used for USB cables and devices.
Now, let’s compare USB 3.1 Gen 1 and USB 3.1 Gen 2. The primary difference between them lies in their speed capabilities. USB 3.1 Gen 1 supports speeds of up to 5 Gbit/s, while USB 3.1 Gen 2 can achieve speeds of up to 10 Gbit/s. Initially, USB-IF intended to market USB 3.1 Gen 1 as “SuperSpeed USB” and USB 3.1 Gen 2 as “SuperSpeed USB+.” However, this naming convention did not gain widespread adoption in the industry. As a result, OEMs often list the speeds of 5 Gbps or 10 Gbps in their specifications to differentiate between the two standards, while the broader industry commonly refers to them as “USB 3.1 Gen 1” and “USB 3.1 Gen 2.”
With the introduction of USB 3.2, the USB-A connection, which had been dominant in the industry, started to be phased out in favor of USB-C. USB-C offers higher data transfer speeds and faster charging capabilities for peripheral devices. Consequently, USB 3.2 Gen 2 is primarily associated with USB-C connectors.
It is worth mentioning that Thunderbolt™ is a hardware interface developed by Intel® in collaboration with Apple® for connecting peripheral devices to computers. Thunderbolt 1 and 2 utilized the same Mini DisplayPort (MDP) connector, while Thunderbolt 3 adopted the USB-C connector. The Thunderbolt logo signifies the presence of Thunderbolt technology in a device.
By understanding these key distinctions and developments in USB standards, you can navigate the various specifications and make informed decisions regarding USB connections and devices.
