The Arctic Freezer 4U-M Air CPU Cooler stands as a testament to Arctic’s commitment to delivering high-performance, cost-effective cooling solutions for demanding server and workstation environments. Designed to tackle the thermal challenges of high-end Intel Xeon, AMD EPYC, and Threadripper processors, this cooler combines robust engineering, versatile compatibility, and energy efficiency in a compact 4U form factor. In this detailed review, we’ll explore the Freezer 4U-M’s design, performance, installation process, compatibility, noise levels, and value proposition, drawing from technical specifications, real-world testing, and user feedback to provide a comprehensive evaluation.
Introduction: The Need for High-Performance Air Cooling
As modern CPUs, particularly those designed for servers and workstations, push the boundaries of performance with higher core counts and thermal design power (TDP) ratings, effective cooling solutions are more critical than ever. While all-in-one (AIO) liquid coolers have gained popularity for their aesthetics and performance, air coolers remain a staple in server environments due to their reliability, simplicity, and lower maintenance requirements. Arctic, a well-known name in the cooling industry, has long championed air cooling with its Freezer series, and the Freezer 4U-M is their latest offering tailored specifically for high-TDP server processors.
Arctic Freezer 4U-M Air CPU Cooler
The Freezer 4U-M is engineered to fit within the constraints of 4U server racks while delivering exceptional cooling for processors with TDPs up to 350W, including 96-core beasts like the AMD Ryzen Threadripper PRO 7995WX. Priced at approximately $60–70 USD, it aims to compete with more expensive solutions from brands like Noctua while maintaining a focus on quiet operation and broad compatibility. But does it live up to the hype? Let’s dive into the details.
Arctic Freezer 4U-M Air CPU Cooler: Design and Build Quality
Physical Specifications
The Arctic Freezer 4U-M is a single-tower air cooler with a compact footprint, measuring 156 x 124 x 145 mm (L x W x H) and weighing approximately 1,275 grams. Its dimensions are optimized for 4U server racks and most consumer 4U cases, making it a versatile choice for both professional and enthusiast builds. The cooler employs eight 6mm copper heat pipes, which efficiently transfer heat from the CPU to a dense array of 57 aluminum fins. This design maximizes surface area for heat dissipation while maintaining a relatively low profile.
The cooler features a push-pull configuration with two 120mm PWM fans from Arctic’s acclaimed P-series. These fans are designed for static pressure, ideal for pushing air through the dense fin stack. The fans operate at speeds ranging from 400 to 2,300 RPM, delivering up to 71.90 CFM of airflow with a noise level rated at 40 dBA at maximum speed. The use of dual ball bearings ensures durability for 24/7 operation, a critical feature for server environments where downtime is not an option.
Aesthetic and Build Considerations
Unlike consumer-oriented coolers that prioritize RGB lighting and flashy designs, the Freezer 4U-M adopts a utilitarian aesthetic. Its black anodized aluminum fins and sleek fan design give it a professional, no-nonsense look suitable for server racks and workstations. The absence of plastic packaging in favor of eco-friendly cardboard further underscores Arctic’s commitment to sustainability, a small but appreciated touch.
The cooler’s baseplate is expansive, designed to provide optimal contact with large server-grade CPUs. It comes pre-applied with Arctic’s MX-6 thermal paste, which is non-conductive, non-capacitive, and boasts a 20% performance improvement over the previous MX-5 compound. This ensures safe and efficient heat transfer right out of the box.
RAM and PCIe Clearance
One of the standout features of the Freezer 4U-M is its generous 53mm RAM clearance, allowing compatibility with memory modules equipped with moderate heatsinks. This is particularly important in server environments where high-capacity DIMMs are common. Additionally, the cooler’s design ensures it does not obstruct the first PCIe slot, making it suitable for systems with high-end GPUs like the Zotac GeForce RTX 4090, as tested by reviewers.

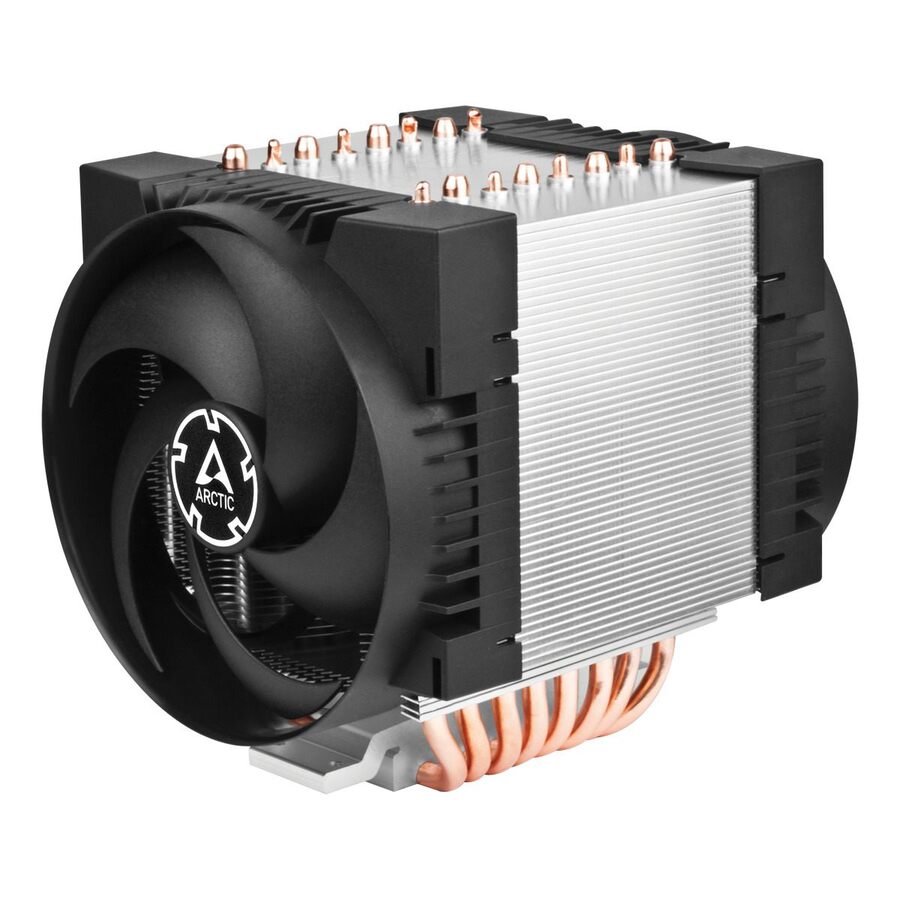

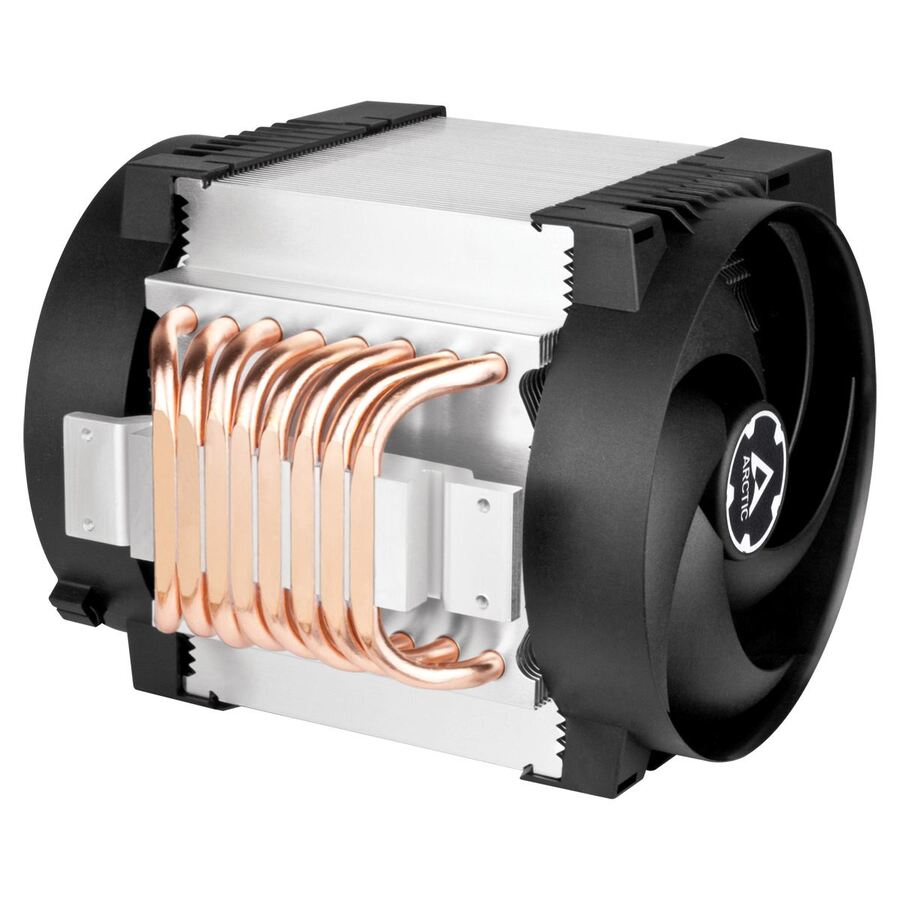

Freezer 4U-M Air CPU Cooler – images: Arctic
Compatibility
The Freezer 4U-M is a multi-compatible cooler, supporting a wide range of Intel and AMD server sockets. On the Intel side, it accommodates LGA 4710, LGA 4189, and LGA 4677, covering modern Xeon processors. For AMD, it supports SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets, making it compatible with EPYC and Threadripper CPUs. A variant of the cooler also supports Ampere Altra processors with the LGA 4926 socket, further expanding its versatility.
This broad compatibility makes the Freezer 4U-M an excellent choice for system builders working with diverse hardware configurations. Its ability to fit dual-socket motherboards without fouling RAM slots or PCIe lanes is a significant advantage in cramped server chassis. The cooler’s mounting mechanism has been enhanced over its predecessor, the Freezer 4U SP3, with pre-installed brackets and clear instructions that streamline the installation process.
Arctic Freezer 4U-M Air CPU Cooler: Installation Process
Installing the Freezer 4U-M is straightforward, provided you follow the included manual. The cooler comes with pre-installed mounting brackets tailored to specific socket types, reducing the complexity of setup. The process typically takes around 15 minutes, even for users with minimal experience. Arctic’s exclusive mounting points ensure a secure fit, and the included MX-6 thermal paste eliminates the need for additional purchases.
One minor critique is that the heat pipe contact patch, while adequate, could benefit from slightly better coverage for larger CPUs like Threadripper. However, real-world testing shows that this does not significantly impact performance, as the cooler handles 350W TDPs with ease. For dual-socket systems, Arctic has ensured that two Freezer 4U-M coolers can fit comfortably, with sufficient clearance for RAM and other components.
Performance
To evaluate the Freezer 4U-M’s performance, reviewers have tested it on high-end platforms like the AMD Ryzen Threadripper 7980X (350W TDP) and AMD EPYC 8534P (64-core Zen 4C). A common testing methodology involves running Cinebench 2024’s multi-core stability test for 30 minutes at 100% CPU load, with temperatures recorded after 20 minutes. For comparison, the Freezer 4U-M was pitted against premium AIOs like the MSI MEG CoreLiquid S360 and high-end air coolers like Noctua’s NH-U14S TR5-SP6.
Thermal Performance
The Freezer 4U-M delivers impressive thermal performance for an air cooler. On the AMD EPYC 8534P, it maintained an average temperature of 42°C and a peak of 60°C during sustained workloads, matching or slightly outperforming Noctua’s NH-D9 and NH-U14S coolers while being significantly quieter than the Dynatron A54 2U heatsink. Against the MSI AIO, the Freezer 4U-M held its own, with temperatures only marginally higher despite costing a fraction of the price.
On the Threadripper 7980X, the cooler kept temperatures well within safe limits, averaging 66°C with a peak of 83°C under full load. This is a notable improvement over the Dynatron A38, which saw peak temperatures of 95°C in similar conditions. Users have reported that the Freezer 4U-M can even handle slight overclocks up to 380W when fans are set to maximum speed, provided there is adequate case airflow.
Energy Efficiency
One of the Freezer 4U-M’s standout features is its low power consumption, rated at just 2.88W. This is remarkable for a cooler capable of taming 350W CPUs, making it an energy-efficient choice for data centers and workstations where power costs are a concern.
Noise Levels
Noise is a critical factor in server and workstation environments, particularly for office workstations where excessive fan noise can be disruptive. The Freezer 4U-M’s dual 120mm PWM fans are designed for quiet operation, producing a maximum noise level of 40 dBA at 2,300 RPM. In real-world testing, the cooler emits a slightly higher-pitched “whooshing” sound compared to AIOs, but it is barely distinguishable without close inspection. At idle, the fans can drop to 900 RPM, resulting in near-silent operation with CPUs running at ambient temperatures.
Compared to traditional 2U server heatsinks like the Dynatron A54, which are notoriously loud, the Freezer 4U-M is a significant improvement. Even when compared to premium Noctua coolers, which retail for $100–$130, the Freezer 4U-M holds its own, offering comparable noise levels at a lower price point.
Value
Priced at $60–70 USD (or approximately 54–70 EUR), the Freezer 4U-M offers exceptional value. It delivers performance comparable to Noctua’s high-end 4U coolers, which cost nearly twice as much, and rivals AIOs costing three to four times its price. The inclusion of MX-6 thermal paste, a six-year warranty, and eco-friendly packaging further sweetens the deal.
For server builders, workstation owners, and budget-conscious enthusiasts, the Freezer 4U-M strikes a balance between performance, affordability, and reliability. Its ability to handle high-TDP CPUs without the maintenance concerns of liquid cooling makes it an attractive choice for mission-critical systems.
Arctic Freezer 4U-M Air CPU Cooler Pros and Cons
Pros
-
Excellent Thermal Performance: Handles up to 350W TDPs with ease, matching or outperforming more expensive coolers.
-
Broad Compatibility: Supports a wide range of Intel and AMD server sockets, including Ampere Altra.
-
Quiet Operation: Dual 120mm PWM fans deliver low noise levels, ideal for office environments.
-
Compact Design: Fits 4U server racks and consumer cases with 53mm RAM clearance and dual-socket compatibility.
-
Energy Efficient: Consumes only 2.88W, reducing operational costs.
-
Affordable: Priced at $60–70, offering premium performance at a budget-friendly price.
-
Easy Installation: Pre-installed brackets and clear instructions simplify setup.
-
Six-Year Warranty: Ensures long-term reliability for 24/7 operation.
Cons
-
Heat Pipe Coverage: Could benefit from slightly better contact patch for larger CPUs.
-
No RGB or Aesthetic Flair: Lacks the visual appeal of consumer-oriented coolers, though this is minor for server use.
-
Fan Noise at Max RPM: While quiet overall, the whooshing sound at 2,300 RPM may be noticeable in silent environments.
Comparison with Competitors
Arctic Freezer 4U-M vs. Noctua NH-U14S TR5-SP6
The Noctua NH-U14S TR5-SP6 is a premium 4U cooler priced at $100–$130. While it offers slightly better thermal performance in some scenarios, the Freezer 4U-M matches it closely while costing half as much. The Arctic cooler also benefits from a more compact design and broader socket compatibility, including Ampere Altra support.
Arctic Freezer 4U-M vs. MSI MEG CoreLiquid S360
The MSI MEG CoreLiquid S360, a high-end 360mm AIO, outperforms the Freezer 4U-M in extreme workloads but comes with a $250 price tag and the added complexity of liquid cooling. The Freezer 4U-M offers comparable performance for less demanding tasks, with the added benefits of lower maintenance and cost.
Arctic Freezer 4U-M vs. Dynatron A54
The Dynatron A54, a 2U server heatsink, is significantly louder and less effective at cooling high-TDP CPUs compared to the Freezer 4U-M. The Arctic cooler’s 4U design and quiet fans make it a superior choice for most server applications.
Ideal Use Cases
The Freezer 4U-M is ideal for:
-
Server Builders: Its 4U compatibility and support for dual-socket motherboards make it perfect for enterprise-grade servers.
-
Workstation Owners: Professionals running high-core-count CPUs for tasks like rendering or data analysis will appreciate its cooling prowess and quiet operation.
-
Overclockers: The cooler’s ability to handle slight overclocks up to 380W makes it suitable for enthusiasts pushing their CPUs.
-
Budget-Minded Power Users: Those seeking high performance without the cost of AIOs or premium air coolers will find the Freezer 4U-M a compelling option.
The Arctic Freezer 4U-M Air CPU Cooler is a standout performer in the server and workstation cooling market. Its ability to handle 350W TDPs, broad socket compatibility, and quiet operation make it a versatile and reliable choice for demanding environments. While it lacks the aesthetic flair of consumer-oriented coolers, its utilitarian design, ease of installation, and exceptional value proposition more than make up for it.
For server builders, workstation owners, and budget-conscious enthusiasts, the Freezer 4U-M offers a near-perfect balance of performance, affordability, and reliability. At $60–70, it delivers cooling performance that rivals solutions costing two to four times as much, earning it a strong recommendation for anyone seeking a high-performance air cooler for high-TDP CPUs.
The Arctic Freezer 4U-M is a must-have for anyone building or upgrading a server or workstation. Its combination of power, efficiency, and value makes it one of the best air coolers in its class, proving that air cooling still has a place in the era of high-TDP processors.
