AM5 platform motherboard – GIGABYTE A620M GAMING X

April 7, 2023
in Reviews

RelatedPosts

Sharp 70CL5K 70-inch 4K Ultra HD

Sharp 70CL5K 70-inch 4K UHD TV: Review

May 26, 2023
Polk Audio React 4.1 System

Polk Audio React 4.1 System – for Any TV

May 24, 2023

The A620M GAMING X (rev. 1.0) motherboard from Gigabyte is a high-quality and powerful motherboard designed for use with AMD Ryzen™ 7000 Series Processors. With a chipset of AMD A620 and support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules, this motherboard is designed to provide excellent performance for gamers and other high-performance computing tasks.

One of the key features of the GIGABYTE A620M GAMING X motherboard is its integrated graphics processor, which includes a DisplayPort and an HDMI port. These ports can support up to 3840×2160@144 Hz and 4096×2160@60 Hz, respectively, providing high-quality graphics and video output. The Realtek® Audio CODEC provides high definition audio output for 2/4/5.1/7.1-channel systems, and LAN connectivity is provided by a Realtek® GbE LAN chip.

In terms of expansion slots, the motherboard includes one PCI Express x16 slot supporting PCIe 4.0 and running at x16, and one PCI Express x1 slot supporting PCIe 3.0 and running at x1. Storage connectivity is provided by a single M.2 connector for PCIe 4.0 x4/x2 SSD support and four SATA 6Gb/s connectors, with RAID 0, RAID 1, and RAID 10 support for SATA storage devices.

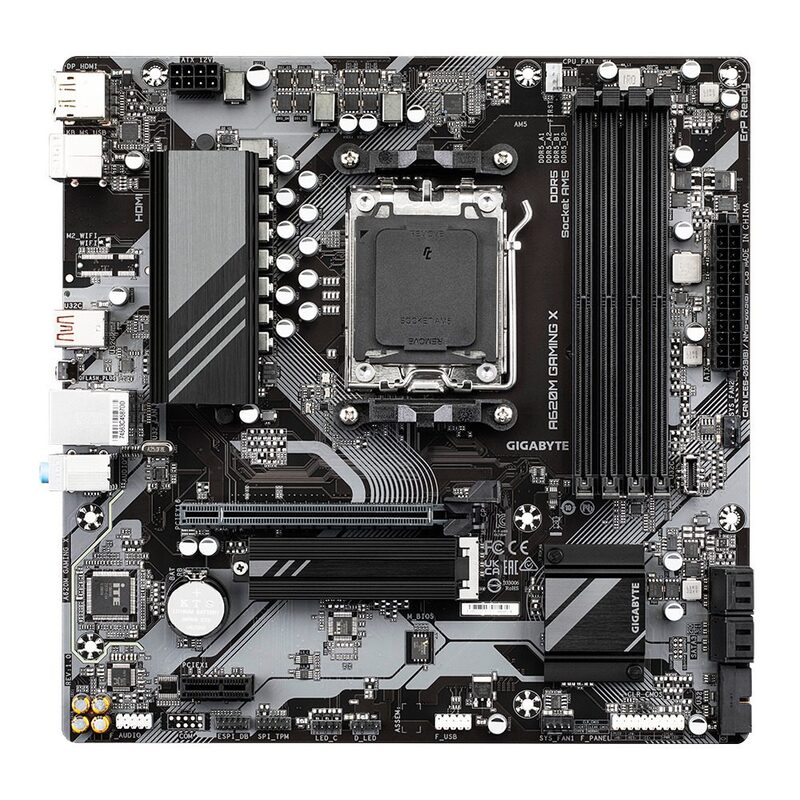

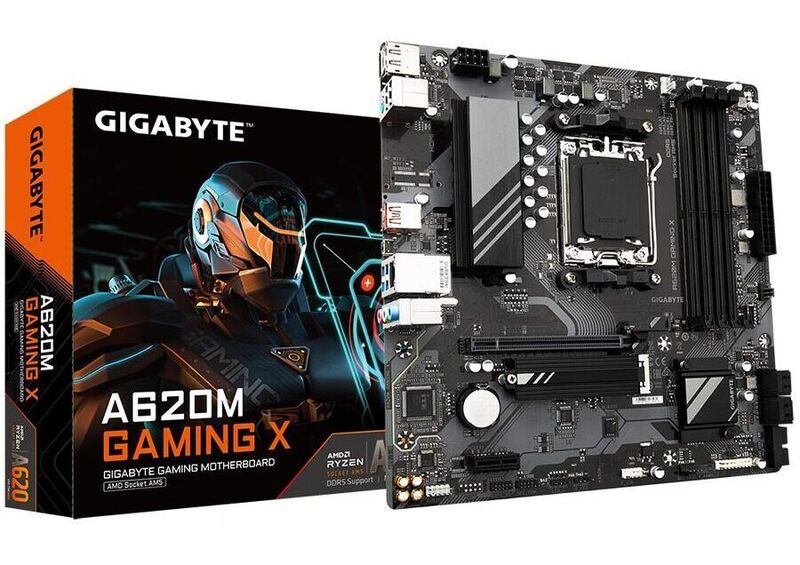

GIGABYTE A620M GAMING X
GIGABYTE A620M GAMING X photo _ GIGABYTE

Other connectivity options include USB 3.2 Gen 2 Type-A, USB Type-C®, USB 3.2 Gen 1, USB 2.0/1.1, and various internal I/O connectors. The motherboard also features an iTE® I/O Controller Chip for hardware monitoring, including voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, and fan fail warning.

The A620M GAMING X motherboard also comes with a variety of unique features, including support for GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus. It also includes bundled software such as Norton Internet Security (OEM version) and LAN bandwidth management software.

The A620M GAMING X (rev. 1.0) motherboard is an excellent choice for gamers and other high-performance computing tasks. Its powerful chipset, high-quality graphics and audio output, and extensive connectivity options make it a top choice for anyone in need of a reliable and high-performing motherboard.

The A620M GAMING X motherboard has several notable advantages:

Support for the latest AMD Ryzen 7000 Series Processors: This means that the motherboard is ready to handle the latest and most powerful CPUs, providing excellent performance for gaming and other demanding applications.

DDR5 memory support: The A620M GAMING X motherboard is compatible with DDR5 memory modules, providing faster data transfer speeds and more efficient performance compared to DDR4.

PCIe 4.0 support: The motherboard comes with a PCIe 4.0 x16 slot for optimal performance with high-end graphics cards.

Multiple storage options: The A620M GAMING X motherboard features an M.2 connector and four SATA 6Gb/s connectors for ample storage options.

Integrated graphics processor: The motherboard has an integrated graphics processor, allowing for easy setup and use without needing a separate graphics card.

Quality audio: The motherboard features a Realtek® Audio CODEC with High Definition Audio and support for 2/4/5.1/7.1-channel audio, providing high-quality sound for gaming and multimedia.

Network connectivity: The A620M GAMING X motherboard includes a Realtek® GbE LAN chip with 1 Gbps/100 Mbps support, ensuring reliable and fast network connectivity.

Comprehensive I/O connectivity: The motherboard has a variety of USB ports, including a USB Type-C® port with USB 3.2 Gen 1 support, and audio jacks for a range of connectivity options.GIGABYTE A620M GAMING X

While the A620M GAMING X motherboard has several impressive features, there are also some potential cons to consider:

Limited expansion: The A620M GAMING X motherboard only has one PCI Express x16 slot and one PCI Express x1 slot, which may not be sufficient for users who need more expansion options.

No Wi-Fi: This motherboard does not have built-in Wi-Fi, which may be a downside for users who prefer wireless connectivity.

Limited USB 3.2 Gen 2 ports: The motherboard only has one USB 3.2 Gen 2 Type-A port on the back panel, which may not be sufficient for users who need more high-speed USB ports.

No Thunderbolt support: The motherboard does not have Thunderbolt support, which may be a downside for users who need Thunderbolt connectivity.

No multi-GPU support: This motherboard does not support multi-GPU setups like SLI or CrossFireX, which may be a downside for users who need high-end graphics performance.

About 8+2+1 Phases Digital VRM Solution in A620M GAMING X motherboard

The 8+2+1 phase digital VRM (Voltage Regulator Module) solution in the A620M GAMING X motherboard is a power delivery system that ensures stable and efficient power delivery to the CPU. It has eight phases for the CPU, two phases for the iGPU (integrated graphics processing unit), and one phase for the memory.

The benefits of having a high-quality VRM solution like this include:

Better power efficiency: The more phases a VRM has, the better it can regulate the voltage and deliver clean power to the CPU. This can lead to improved power efficiency, which can result in lower temperatures and less power consumption.

Improved overclocking potential: A stable and efficient power delivery system is essential for overclocking. The 8+2+1 phase VRM solution in the A620M GAMING X motherboard can help provide a stable power supply for overclocking the CPU and memory.

VRM Solution in A620M GAMING X motherboard

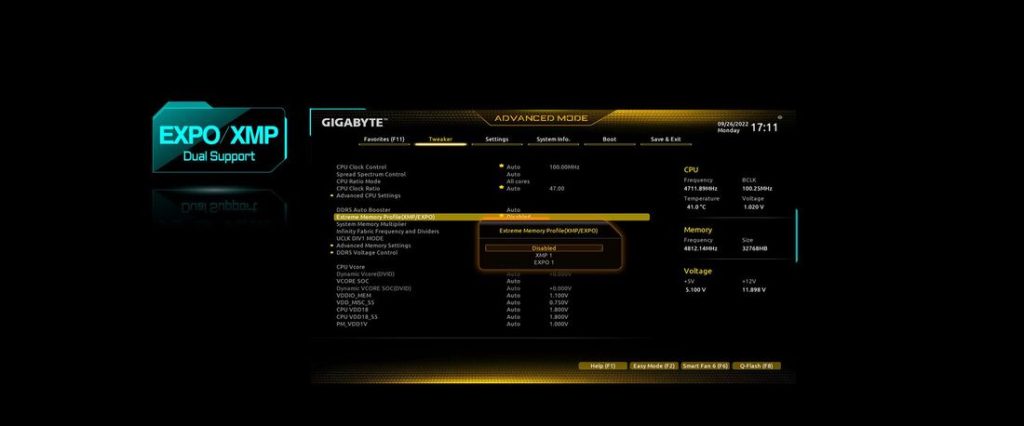

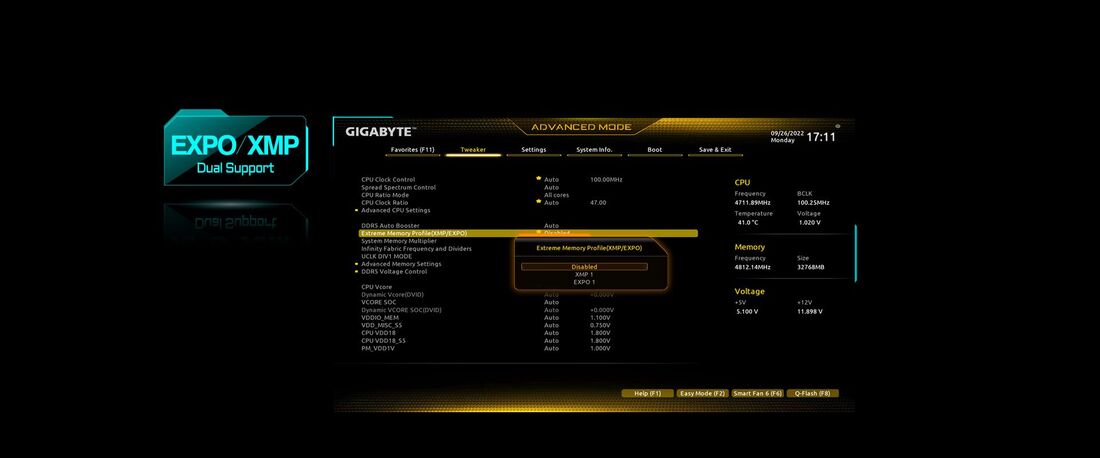

Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online

Higher durability: A VRM with more phases can help reduce the load on each individual phase, which can result in a longer lifespan for the motherboard.

The 8+2+1 phase digital VRM solution in the A620M GAMING X motherboard is a high-quality power delivery system that can help ensure stable and efficient performance for the CPU, iGPU, and memory.

Smart Fan 6 in A620M GAMING X motherboard
Smart Fan 6 is a cooling technology in A620M GAMING X motherboard that offers a variety of features to optimize and control the cooling performance of your system. It includes multiple temperature sensors and hybrid fan headers, allowing you to configure different fan speeds and settings for different areas of the motherboard and the computer case.

The Smart Fan 6 technology also offers a range of advanced features such as:

Fan Stop – Allows the fan to stop completely when the system is under light load or idle, reducing noise and power consumption.

Dual Curve Mode- Lets you set custom fan curves based on temperature and load, allowing you to optimize cooling performance and noise levels.

Fan Control – Allows you to control the speed and behavior of individual fans connected to the motherboard.

System Information Viewer – Provides real-time monitoring of system temperatures, voltages, and fan speeds, allowing you to keep track of system performance and health.

GIGABYTE’s A620 motherboard lineup features exclusive layout design and BIOS settings that enhance memory performance up to DDR5-6400 for optimal value and performance on the AM5 platform. These comprehensive motherboards offer features to fit users’ needs and budget, making them the ideal choice for those upgrading to the latest AM5 platform. Additionally, GIGABYTE’s A620 motherboards boast innovative PCIe EZ-Latch technology for easy graphics card upgrades while avoiding accidental damage to surrounding components. The exclusive Q-Flash Plus feature allows for BIOS updates without the need for a processor, memory, or graphics card installation. GIGABYTE’s GCC software platform also offers a user-friendly interface and multiple form factor options, ranging from Micro ATX to Mini ITX, making the A620 platform highly competitive.

Tags: 8+2+1 phase digital VRMA620M GAMING X motherboardAM5AMD EXPOGIGABYTE's A620 motherboardlineupSmart Fan 6
