Choosing a Winner: Intel 13th Gen or Ryzen 7000 Series?

Both the 13th Gen Intel Core processors and the Ryzen 7000 series processors bring significant advancements in performance and features compared to their previous generations. Here are the key points for each:

13th Gen Intel Core processors, Raptor Lake:

  • Performance Hybrid Architecture: These processors utilize Intel Thread Director to intelligently route workloads across up to eight Performance-cores (P-core) and up to 16 Efficient-cores (E-core).
  • Gaming: Designed to deliver exceptional gaming performance while efficiently handling other tasks.
  • Creating Experience: Faster P-cores, more E-cores, and support for DDR4/DDR5 and PCIe 4.0/5.0 enhance multitasking capabilities and customization options.
  • Customization: Provides a highly flexible architecture and industry-leading tools for performance customization.
  • Mobile: Enables work, streaming, gaming, and content creation on the go with increased multitasking power and E-cores.
  • Desktop: Suitable for modern gaming, streaming, and recording, offering up to eight Performance-cores and up to 16 Efficient-cores.
  • Overclocking: Enthusiasts can easily overclock their unlocked Intel Core processors using tools like the Intel Extreme Tuning Utility.

Intel’s 13th Gen processor, codenamed Raptor Lake, is based on the 10nm ESF “Intel 7” process node, which has been a trusted choice for the company. However, the development of their supposed 14th Gen processor, Meteor Lake, using a 4nm process, has faced significant setbacks and delays.

Intel is positioning itself as a frontrunner in the industry with the release of the new 13th Gen Raptor Lake processor. Raptor Lake promises improved speed, power, and overall enhancements in gaming experiences. DDR5 RAM compatibility plays a crucial role in achieving peak performance with these new Intel components.

To enhance performance, Intel has increased its DDR5 support to 5600, compared to the 4800 support in its predecessor, Alder Lake. This decision aligns with the stabilized prices of new RAM technology, making it a smart move for Intel.

Intel -

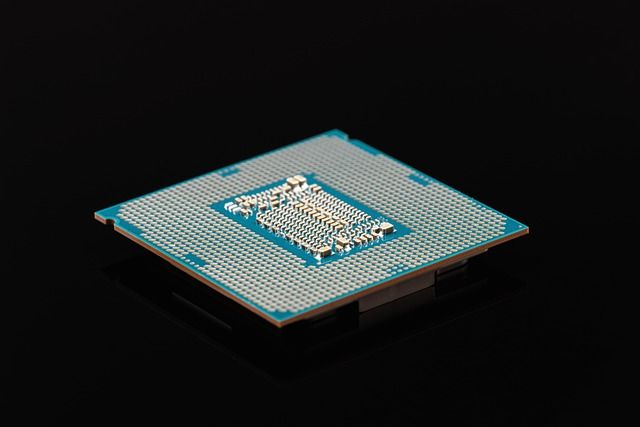

Intel – photo: Pixabay

Additionally, Intel has decided to maintain DDR4 support up to 3200, distinguishing itself from AMD’s Ryzen 7000 series, which has dropped DDR4 support.

DDR5 RAM technology showcases notable advancements in gaming performance, primarily due to improved architecture and double the available channels for efficiency improvements. Furthermore, DDR5 RAM supports significantly more memory, with capacities reaching up to 512GB compared to DDR4’s maximum of 32GB.

These advancements in memory technology have wide-ranging effects beyond gaming. The upgraded RAM capabilities deliver significant improvements in demanding tasks such as 3D rendering and machine learning.

Raptor Lake represents the pinnacle of hybrid architecture and core management. It features eight additional efficient cores and threads compared to Alder Lake, resulting in an extra 600MHz in total turbo boost.

The 13th Gen Raptor Lake chips will consist of Performance Cores (P-cores) with the new Raptor Cove microarchitecture. These cores excel in single- and lightly-threaded tasks like gaming and productivity workloads. The Efficiency Cores (E-cores) also incorporate a revamped microarchitecture, including doubled L2 cache, while still utilizing the Gracemont design. E-cores handle heavily-threaded workloads, background tasks, and multitasking.

For instance, the Core i9-13900K will feature a total of 24 cores, consisting of eight P-cores and 16 E-cores. This represents an additional eight E-cores compared to the previous-generation flagship (with the same number of P-cores). The Core i9, i7, and K-series i5 chips will utilize a new larger 8+16 die (8 P-cores + 16 E-cores). This larger die offers additional cache capacity for the cores. However, the Core i3 and lower-tier models will have the same cache amount as existing Alder Lake models.

The Core i9-13900K, priced at $589, will compete directly with AMD’s Ryzen 9 7950X, which has 16 cores and a price of $699. Intel has the advantage of potentially offering a lower price point.

The Core i7-13700K, priced at $409, receives a 400 MHz p-core frequency boost to 5.4 GHz, four additional e-cores (totaling eight), and a 400 MHz e-core boost to 4.2 GHz.

Surprisingly, the 13700K sees a 63W increase in MTP (Maximum Turbo Power) to 253W compared to the previous generation. The 13700K competes with AMD’s Ryzen 7 7700X priced at $399.

The 13600K benefits from four additional e-cores, a 200 MHz higher p-core clock reaching 5.1 GHz, and a 300 MHz e-core improvement resulting in a 3.9 GHz boost. The 13600K also sees a 31W MTP increase to 181W.

While the peak frequencies for p-cores and e-cores have been raised on all Raptor Lake chips, the base clocks have seen a decline of 200 MHz. However, this is unlikely to have a significant impact in practical applications and is likely done to manage the TDP rating. The 13900K maintains a Base Turbo Power (BTP) of 125W but sees a 12W increase in Maximum Turbo Power (MTP) to 253W.

The Core i3-13600K is the only chip to receive a price increase, with both the regular and graphics-less 13600KF models priced $30 higher than the previous generation. This SKU targets high-volume sales and positions Intel favorably against AMD in terms of pricing. However, AMD’s $299 Ryzen 5 7600X offers powerful gaming performance, so the overall performance comparison will be crucial when Raptor Lake is tested.

Several improvements apply to all three chips. For instance, Intel has increased the L2 cache from 1.25MB to 2MB for each p-core and doubled the L2 cache amount for each e-core cluster to 4MB. The L3 cache capacity has also increased due to the addition of more e-core clusters, each having an adjacent L3 cache slice as part of the design. Consequently, cache capacity has improved across all K-series Raptor Lake chips.

Ryzen 7000 series processors:

  • 3D V-Cache Technology: Introduces AMD’s 3D V-Cache technology, adding up to 144MB of on-chip memory for a significant gaming performance boost.
  • Gaming: Touted as the world’s fastest gaming processors, featuring high-performance “Zen 4” cores, up to 16 cores, 32 threads, boost clocks up to 5.7GHz, and substantial on-chip memory.
  • Time-saving Technology: Offers time-saving features such as PCIe 5.0 storage support, ultra-fast WiFi 6E, AMD EXPO technology, and dedicated video accelerators.
  • Overclocking: AMD EXPO technology enables higher memory frequencies and more aggressive settings, unlocking higher and smoother frame rates in games.
  • Energy Efficiency: Focuses on energy efficiency, including an Eco-Mode for lower power consumption and new low-power 65W models.
  • Future Upgradeability: Supports the new Socket AM5 platform, allowing users to upgrade to processors with new technologies as they become available.

AMD has unveiled the suggested pricing for the first four desktop CPUs in the Ryzen 7000 Series. It’s important to note that these are only suggested prices, and individual retailers may set their own prices, resulting in potential variations. Here are the suggested prices:

  • Ryzen 9 7950X – $699
  • Ryzen 9 7900X – $549
  • Ryzen 7 7700X – $399
  • Ryzen 5 7600X – $299
  • Ryzen 9 7950X3D – $699
  • Ryzen 9 7900X3D – $599
  • Ryzen 9 7900 – $429
  • Ryzen 7 7800X3D – $449
  • Ryzen 7 7700 – $329
  • Ryzen 5 7600 – $229

Keep in mind that these prices may not reflect the actual amount you’ll pay, as retailers have the flexibility to set their own prices.

Ryzen

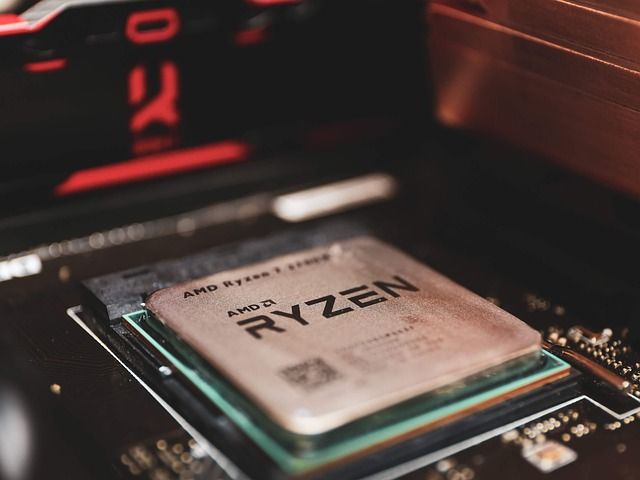

Ryzen – photo: Pixabay

The Ryzen 7000 Series CPUs are designed for desktop use and come with various specifications and features. Here is a summary of the announced desktop CPUs:

  • Ryzen 9 7950X – 16 cores, 32 threads, max clock speed of 5.7GHz, 80MB cache, 170W TDP
  • Ryzen 9 7950X3D – 16 cores, 32 threads, max clock speed of 5.7GHz, 128MB cache, 120W TDP
  • Ryzen 9 7900X – 12 cores, 24 threads, max clock speed of 5.6GHz, 76MB cache, 170W TDP
  • Ryzen 9 7900X3D – 12 cores, 24 threads, max clock speed of 5.6GHz, 128MB cache, 120W TDP
  • Ryzen 9 7900 – 12 cores, 24 threads, max clock speed of 5.4GHz, 65W TDP
  • Ryzen 7 7800X3D – 8 cores, 16 threads, max clock speed of 5.0GHz, 96MB cache, 120W TDP
  • Ryzen 7 7700X – 8 cores, 16 threads, max clock speed of 5.4GHz, 40MB cache, 105W TDP
  • Ryzen 7 7700 – 8 cores, 16 threads, max clock speed of 5.3GHz, 65W TDP
  • Ryzen 7 5800X3D – 8 cores, 16 threads, max clock speed of 4.5GHz, 96MB cache, 105W TDP
  • Ryzen 5 7600X – 6 cores, 12 threads, max clock speed of 5.3GHz, 38MB cache, 105W TDP

Four of the CPUs in the Ryzen 7000 Series have a ‘3D’ suffix, indicating additional L2 and L3 cache, which enhances responsiveness and framerates without significantly affecting clock speeds or overclocking capabilities.

All the desktop CPUs are based on the Zen 4 architecture, featuring compatibility with existing AM5 motherboards after a BIOS update. Key features across the processors include PCIe Gen 5 support, DDR5 memory, and integrated RDNA 2 graphics within the 6nm I/O die. The Zen 4 architecture delivers over 15% improvement in single-threaded performance compared to Zen 3, though it may require slightly more power to achieve this level of performance.

AMD is introducing a new socket design with the upcoming generation of CPUs, marking the retirement of the AM4 socket that has been in use for the past five years. The new socket, known as LGA1718 (Land Grid Array), features a motherboard design with CPU pins instead of pins on the CPU itself. Unlike AMD, Intel has been using LGA sockets for several generations, while AMD stuck with the older Pin Grid Array (PGA) socket design until Ryzen 5000.

The LGA1718 socket has 1,718 pins on the motherboard, allowing for a higher pin density compared to the AM4 socket, which has only 1,331 pins. This increased pin count enables support for DDR5 memory, PCI-Express 5.0, and overall improved performance.

The new AM5 sockets will be integrated into the next generation of 600 series motherboards. The top-tier X670E extreme motherboards will offer high-quality voltage regulator modules for enhanced overclocking and will feature PCI-E 5 support on all M.2 and PCIe slots. X670 boards will provide mainstream overclocking capabilities, with PCIe 5.0 on the first x16 PCIe 5.0 slot and at least one M.2 slot. B650 motherboards will have PCIe 5.0 for at least one M.2 slot and PCIe 4.0 for other slots.

These new motherboards will support up to 24 PCIe 5.0 lanes, 14 USB ports running at up to 20Gbps, Wi-Fi 6E, and Bluetooth 5.2. Additionally, thanks to the new integrated graphics, AMD 600 motherboards will be capable of supporting up to four HDMI 2.1 or DisplayPort 2 ports.

Despite the transition to a new socket design, Ryzen 7000 chips will maintain the same socket size and will be fully compatible with AM4 coolers.

Let’s take a look at the competition between Raptor Lake and Ryzen 7000. Both Intel and AMD are pushing the clock speeds of their modern chips to unprecedented levels, which naturally leads to increased power consumption, especially during multi-threaded workloads.

In terms of memory support, AMD’s Zen 4 Ryzen 7000 chips only work with DDR5 memory, while Raptor Lake supports both DDR4 and DDR5. This gives Intel an advantage in terms of overall system cost since DDR5 still carries a price premium. However, the availability of DDR5 has improved, and prices are decreasing as supply increases and demand stabilizes. As a result, the price difference should become less significant, although DDR5 is likely to retain a premium position in the market.

Ultimately, determining which is better between the 13th Gen Intel Core processors and the Ryzen 7000 series processors depends on specific models, real-world benchmarks, and individual needs and preferences.
