When it comes to the various electronic components that comprise a computer, the graphics card stands out as an indispensable device for delivering a top-notch visual experience. This critical component, in the form of an integrated circuit, handles data processing and transforms it into the visible information presented to users through monitors, televisions, projectors, and more. In this article, we will guide you through the different types of graphics cards, their constituent elements, key features, and help you determine how to make the right choice.
Types of Graphics Cards – Graphics cards fall into two categories, primarily distinguished by their use of RAM: integrated and dedicated graphics cards.
Integrated Graphics Cards Integrated graphics cards utilize the VRAM (Video Memory) of your computer rather than having their dedicated RAM. These cards are integrated within the same chip as the CPU (central processing unit) of your computer. Integrated graphics cards are typically more budget-friendly and can suffice for tasks that are not highly graphics-intensive.
Dedicated Graphics Cards Dedicated graphics cards come equipped with their independent memory source, ensuring superior performance by keeping their memory separate from your computer’s RAM. However, it’s worth noting that they consume more power, necessitating efficient cooling systems. Dedicated graphics cards excel in delivering an enhanced visual experience, particularly in demanding games and graphic design software. These cards are available in two formats: with a direct connection to a motherboard port or in MX format for laptops.
Components of a Graphics Card – Here are the elements that make up a graphics card, along with their specifications:

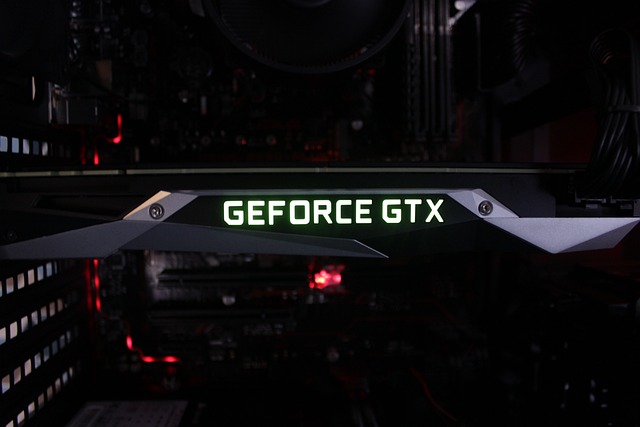

- GPU (Graphics Processing Unit) – The GPU serves as the graphics card’s brain, performing all necessary operations related to image processing. The GPU plays a significant role in determining the overall performance of the graphics card. Key GPU specifications include:
- Core clock speed (CPU): Measured in MHz or GHz, this indicates how fast the graphics card’s cores operate. A higher clock frequency translates to faster data processing. Low-end cards typically operate around 825MHz, while high-end models can exceed 1200MHz. Two types of frequencies are typically specified: Base Clock (processor base frequency) and Boost Clock (the maximum frequency within temperature and power limits).
- Number of shader processors: Also known as CUDA cores (in NVIDIA cards) or stream processors (in AMD cards), these components are crucial for texture rasterization and object geometry. More shader processors generally result in higher graphics card performance, with low-range models having around 192 cores and high-end models reaching up to 3594 cores.
- Number of pipelines: Responsible for converting vertices and lines to pixels when transitioning from 3D to 2D images.
- ROP (Raster Operations Pipeline): A subprocessor that handles the memory transcription of pixels, directly impacting FPS (Frames Per Second) in video games.
- GRAM (Graphics Random Access Memory) – Graphics cards require dedicated memory to operate efficiently. GRAM, or graphics memory, consists of specialized integrated RAM that stores graphics data when needed, preventing the main RAM of your computer from getting overloaded. The quality of GRAM depends on factors such as:
- Capacity: Measured in GB (gigabytes) or MB (megabytes), a higher capacity results in quicker data processing. Capacity can vary from 4GB to 16GB in high-end models.
- Interface or data bus: Measured in bits, the data bus represents the number of data that can be transmitted or received per unit of time. A higher-bit bus allows for more data transfer. Common types include PCI Express (PCIe) slots.
- Speed: Measured in MHz or GHz (effective frequency), this complements the data bus by determining data transfer speed.
- Bandwidth: Usually measured in GB/s (gigabytes per second), bandwidth is the product of the memory interface (bits) and the effective frequency of speed divided by 8. Higher bandwidth means faster data transfer.
- RAMDAC (Random Access Memory Digital-to-Analog Converter) – The RAMDAC converts digital signals into analog signals for output devices, affecting screen refresh rates. Although most monitors support digital images today, RAMDAC is less relevant but is typically measured in MHz, with higher values supporting a wider range of monitor refresh rates.
- Outputs – Graphics cards typically offer various output options for connecting to monitors. Common output options include VGA (analog image), DVI (digital displays), HDMI, and DisplayPort (digital image transmission technologies that support high-definition video and audio). In modern setups, HDMI and DisplayPort are often recommended due to their versatility and support for high-definition content.
- Interfaces with the Motherboard – The connection systems between the graphics card and your computer’s motherboard play a crucial role in determining the bus architecture, frequency, and required bandwidth for data transfer.
- Cooling Devices – Effective cooling is essential to prevent graphics card overheating, which can lead to performance issues and damage. Cooling devices include heatsinks and fans. Heatsinks are passive and silent, while fans are active but noisier. Combining both heatsinks and fans is often recommended for optimal cooling. Some advanced setups use water cooling for enhanced performance.
- Power – Graphics cards consume a significant amount of energy, so it’s vital to ensure they don’t exceed the power supplied by the PCIe port on the motherboard, typically limited to 75W. If higher power consumption is necessary, you may need to connect the graphics card to a separate power source using a specific connector.
The types of games you aim to play, play a crucial role in determining the criteria for choosing the appropriate graphics card. When indulging in GPU-intensive games, it becomes essential to invest in a powerful graphics card. Additionally, considering the resolution at which you plan to enjoy your games is of utmost importance. The higher your monitor’s resolution, the more demanding it is on your graphics processing unit (GPU) to ensure an exceptional gaming experience.
As you move towards higher resolutions, the demands of PC games also increase proportionally. For example, if you own a 4K monitor, a top-tier graphics card becomes indispensable to fully appreciate the visual splendor of 4K gaming.
In addition to resolution, the refresh rate of your monitor is another critical factor to contemplate when selecting a graphics card. The refresh rate signifies how frequently your monitor can refresh its display with new images per second. For instance, a 60Hz refresh rate means your monitor updates its content 60 times per second.
If your monitor boasts a high refresh rate, it is imperative to pair it with a high-performance graphics card to unleash its full potential.
Achieving a balanced configuration between these components is essential for the proper functioning of your graphics card. It’s not enough to have a graphics card with high capacity if the bandwidth is limited, so consider all these factors when making your selection.
